Traxxas 1918 18-tooth 48-pitch gear

What size is Traxxas 1918 gear? · Modern device · basis: Maker's parts list (Traxxas)

Also called: Traxxas 1918, traxxas 1918, Traxxas part 1918, 1918 gear, 18-t pinion (48-pitch) / set screw, Traxxas 1918 size, Traxxas 1918 dimensions, Traxxas 1918 replacement, repuesto Traxxas 1918, Traxxas 1918 Ersatzteil

Exact dimensions. True size, with no printing tolerance added.

length
10.58 mm
width
10.48 mm
height
1.0 mm

Notes

  • Traxxas part 1918: Gear, 18-T pinion (48-pitch) / set screw. Size exactly as printed in Traxxas's parts list; the file is built from that size only.
  • 18-tooth 48-pitch gear, 20° involute, module 0.5292 mm, Ø10.58 OD — 1 mm reference (face width not printed).
  • True size, no printing tolerance added.

Traxxas 1918 18-tooth 48-pitch gear size chart

dimensionvalue
part numberTraxxas 1918
name (as printed)Gear, 18-T pinion (48-pitch) / set screw
size (as printed)18-T pinion; 48-pitch
teeth18
pitch48 diametral pitch (module 0.5292 mm)
pitch diameter9.52 mm
outside diameter10.58 mm (standard addendum)
borenot printed
face widthnot printed
used inTraxxas Rustler 2WD XL-5 (1/10 stadium truck, 37054), Traxxas Slash 2WD (1/10 short course truck, 58034)

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

Traxxas (sheet hosted by JEGS)Slash 2WD Unassembled Kit (Model 58014-4) parts list, REV. 201103 1248, p. 4webPublisher's page; dimensions are facts

Free files

★ Free files 1 parts. Generated by Xem Studio from the standard; threads are plain cylinders at major diameter. CC BY 4.0. index.json

traxxas-1918-gear-18-t-pinion-48-pitch-set-screw-profile18-tooth 48-pitch gear, 20° involute, module 0.5292 mm, Ø10.58 OD — 1 mm reference (face width not printed)STEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=traxxas-1918-gear-18-t-pinion-48-pitch-set-screw

Traxxas 1918 18-tooth 48-pitch gear, isometric render of a generated part

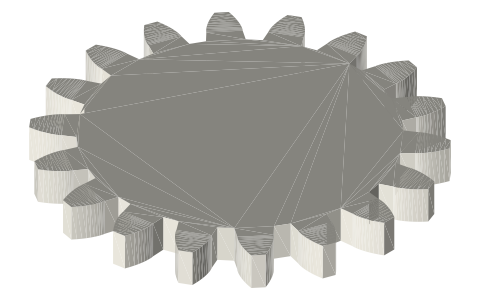

Render of traxxas-1918-gear-18-t-pinion-48-pitch-set-screw-profile from the free STEP; not to scale.
