Traxxas 1985 ball bearing, 5 × 8 × 0.5 mm

What size is Traxxas bearing 1985? · Modern device · basis: Maker's parts list (Traxxas)

Also called: Traxxas 1985, traxxas 1985, Traxxas part 1985, 1985 ptfe-coated washers, 5x8x0.5mm (use with ball bearings), Traxxas 1985 size, Traxxas 1985 dimensions, Traxxas 1985 replacement, repuesto Traxxas 1985, Traxxas 1985 Ersatzteil

Exact dimensions. True size, with no printing tolerance added.

length
8.01 mm
width
8.01 mm
height
0.51 mm

Notes

  • Traxxas part 1985: PTFE-coated washers, 5x8x0.5mm (20) (use with ball bearings). Size exactly as printed in Traxxas's parts list; the file is built from that size only.
  • Bearing envelope 5 × 8 × 0.5 mm (bore × OD × width).
  • True size, no printing tolerance added.

Traxxas 1985 ball bearing, 5 × 8 × 0.5 mm size chart

dimensionvalue
part numberTraxxas 1985
name (as printed)PTFE-coated washers, 5x8x0.5mm (20) (use with ball bearings)
size (as printed)5x8x0.5mm
bore5 mm
outside diameter8 mm
width0.5 mm
seals / ballsas printed in the name; not modelled
used inTraxxas Rustler 2WD XL-5 (1/10 stadium truck, 37054), Traxxas Slash 2WD (1/10 short course truck, 58034), Traxxas TRX-4 2021 Ford Bronco (1/10 crawler, 92076-4)

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

Traxxas (sheet hosted by JEGS)Slash 2WD Unassembled Kit (Model 58014-4) parts list, REV. 201103 1248, p. 1webPublisher's page; dimensions are facts

Free files

★ Free files 1 parts. Generated by Xem Studio from the standard; threads are plain cylinders at major diameter. CC BY 4.0. index.json

traxxas-1985-ptfe-coated-washers-5x8x0-5mm-use-with-ball-bearings-envelopeBearing envelope 5 × 8 × 0.5 mm (bore × OD × width)STEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=traxxas-1985-ptfe-coated-washers-5x8x0-5mm-use-with-ball-bearings

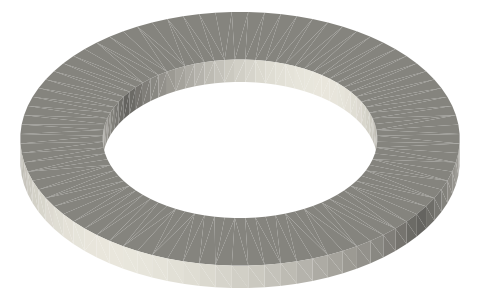

Traxxas 1985 ball bearing, 5 × 8 × 0.5 mm, isometric render of a generated part
Render of traxxas-1985-ptfe-coated-washers-5x8x0-5mm-use-with-ball-bearings-envelope from the free STEP; not to scale.

Fits with

Traxxas Rustler 2WD (37054-8) parts list, isometric render of a generated part
Traxxas Rustler 2WD (37054-8) parts list445×311×178 mm★ 21 files
Traxxas Slash 2WD kit (58014-4) parts list, isometric render of a generated part
Traxxas Slash 2WD kit (58014-4) parts list578×296×214 mm★ 43 files
Traxxas TRX-4 kit (82016-4) parts list, isometric render of a generated part
Traxxas TRX-4 kit (82016-4) parts list584×249×239 mm★ 47 files
length
Traxxas Rustler 2WD XL-5 (1/10 stadium truck, 37054)445×311×178 mm★ 1 file
length
Traxxas Slash 2WD (1/10 short course truck, 58034)578×296×214 mm★ 1 file
length
Traxxas TRX-4 2021 Ford Bronco (1/10 crawler, 92076-4)584×249×239 mm★ 1 file
Ball bearings, 683 to 6210 and flanged F6xx (ISO 15), isometric render of a generated part
Ball bearings, 683 to 6210 and flanged F6xx (ISO 15)44 sizes★ 44 files

Questions

What size is Traxxas bearing 1985?

5 × 8 × 0.5 mm
