Traxxas 2416 16-tooth 48-pitch gear

What size is Traxxas 2416 gear? · Modern device · basis: Maker's parts list (Traxxas)

Also called: Traxxas 2416, traxxas 2416, Traxxas part 2416, 2416 gear, 16-t pinion (48-pitch) / set screw, Traxxas 2416 size, Traxxas 2416 dimensions, Traxxas 2416 replacement, repuesto Traxxas 2416, Traxxas 2416 Ersatzteil

Exact dimensions. True size, with no printing tolerance added.

length
9.52 mm
width
9.52 mm
height
1.0 mm

Notes

  • Traxxas part 2416: Gear, 16-T pinion (48-pitch) / set screw. Size exactly as printed in Traxxas's parts list; the file is built from that size only.
  • 16-tooth 48-pitch gear, 20° involute, module 0.5292 mm, Ø9.52 OD — 1 mm reference (face width not printed).
  • True size, no printing tolerance added.

Traxxas 2416 16-tooth 48-pitch gear size chart

dimensionvalue
part numberTraxxas 2416
name (as printed)Gear, 16-T pinion (48-pitch) / set screw
size (as printed)16-T pinion; 48-pitch
teeth16
pitch48 diametral pitch (module 0.5292 mm)
pitch diameter8.47 mm
outside diameter9.52 mm (standard addendum)
borenot printed
face widthnot printed
used inTraxxas Rustler 2WD XL-5 (1/10 stadium truck, 37054), Traxxas Slash 2WD (1/10 short course truck, 58034)

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

Traxxas (sheet hosted by JEGS)Slash 2WD Unassembled Kit (Model 58014-4) parts list, REV. 201103 1248, p. 4webPublisher's page; dimensions are facts

Free files

★ Free files 1 parts. Generated by Xem Studio from the standard; threads are plain cylinders at major diameter. CC BY 4.0. index.json

traxxas-2416-gear-16-t-pinion-48-pitch-set-screw-profile16-tooth 48-pitch gear, 20° involute, module 0.5292 mm, Ø9.52 OD — 1 mm reference (face width not printed)STEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=traxxas-2416-gear-16-t-pinion-48-pitch-set-screw

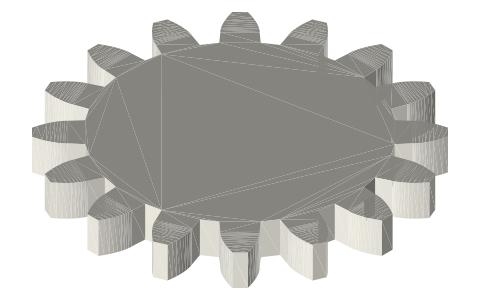

Traxxas 2416 16-tooth 48-pitch gear, isometric render of a generated part
Render of traxxas-2416-gear-16-t-pinion-48-pitch-set-screw-profile from the free STEP; not to scale.

Fits with

Traxxas Rustler 2WD (37054-8) parts list, isometric render of a generated part
Traxxas Rustler 2WD (37054-8) parts list445×311×178 mm★ 21 files
Traxxas Slash 2WD kit (58014-4) parts list, isometric render of a generated part
Traxxas Slash 2WD kit (58014-4) parts list578×296×214 mm★ 43 files
length
Traxxas Rustler 2WD XL-5 (1/10 stadium truck, 37054)445×311×178 mm★ 1 file
length
Traxxas Slash 2WD (1/10 short course truck, 58034)578×296×214 mm★ 1 file
