Traxxas 2431 31-tooth 48-pitch gear

Name: Traxxas 2431 31-tooth 48-pitch gear dimension sheet
Creator: Xem Studio
License: https://creativecommons.org/licenses/by/4.0/

What size is Traxxas 2431 gear? · Modern device · basis: Maker's parts list (Traxxas)

Also called: Traxxas 2431, traxxas 2431, Traxxas part 2431, 2431 gear, 31-t pinion (48-pitch) / set screw, Traxxas 2431 size, Traxxas 2431 dimensions, Traxxas 2431 replacement, repuesto Traxxas 2431, Traxxas 2431 Ersatzteil

Exact dimensions. True size, with no printing tolerance added.

length: 17.43 mm
width: 17.46 mm
height: 1.0 mm

Notes

Traxxas part 2431: Gear, 31-T pinion (48-pitch) / set screw. Size exactly as printed in Traxxas's parts list; the file is built from that size only.
31-tooth 48-pitch gear, 20° involute, module 0.5292 mm, Ø17.46 OD — 1 mm reference (face width not printed).
True size, no printing tolerance added.

Traxxas 2431 31-tooth 48-pitch gear size chart

dimension	value
part number	Traxxas 2431
name (as printed)	Gear, 31-T pinion (48-pitch) / set screw
size (as printed)	31-T pinion; 48-pitch
teeth	31
pitch	48 diametral pitch (module 0.5292 mm)
pitch diameter	16.40 mm
outside diameter	17.46 mm (standard addendum)
bore	not printed
face width	not printed
used in	Traxxas Slash 2WD (1/10 short course truck, 58034)

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

Traxxas (sheet hosted by JEGS)

Slash 2WD Unassembled Kit (Model 58014-4) parts list, REV. 201103 1248, p. 4

web

Publisher's page; dimensions are facts

Free files

★ Free files 1 parts. Generated by Xem Studio from the standard; threads are plain cylinders at major diameter. CC BY 4.0. index.json

traxxas-2431-gear-31-t-pinion-48-pitch-set-screw-profile

31-tooth 48-pitch gear, 20° involute, module 0.5292 mm, Ø17.46 OD — 1 mm reference (face width not printed)

STEP · STL

Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.

Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=traxxas-2431-gear-31-t-pinion-48-pitch-set-screw

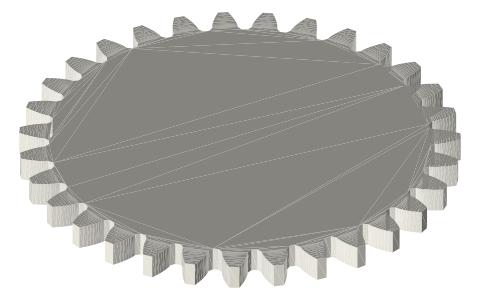

Traxxas 2431 31-tooth 48-pitch gear, isometric render of a generated part — Render of traxxas-2431-gear-31-t-pinion-48-pitch-set-screw-profile from the free STEP; not to scale.
