Traxxas 2548 screws, M4 × 12 mm

What size are Traxxas 2548 screws? · Modern device · basis: Maker's parts list (Traxxas)

Also called: Traxxas 2548, traxxas 2548, Traxxas part 2548, 2548 screws, countersunk machine (100-degree), Traxxas 2548 size, Traxxas 2548 dimensions, Traxxas 2548 replacement, repuesto Traxxas 2548, Traxxas 2548 Ersatzteil

Exact dimensions. True size, with no printing tolerance added.

length
8.04 mm
width
8.04 mm
height
14.32 mm

Notes

  • Traxxas part 2548: Screws, countersunk machine (100-degree). Size exactly as printed in Traxxas's parts list; the file is built from that size only.
  • M4 × 12 mm, shank as a plain Ø4 cylinder, ISO 10642 flat (countersunk) head Ø8 × 2.3 mm.
  • True size, no printing tolerance added.
  • Traxxas prints the thread and length; the head is drawn to the ISO 10642 flat (countersunk) head standard (from the catalog's screw page) because the maker gives no head size.

Traxxas 2548 screws, M4 × 12 mm size chart

dimensionvalue
part numberTraxxas 2548
name (as printed)Screws, countersunk machine (100-degree)
size (as printed)4x12mm countersunk machine (100-degree)
threadM4
length12 mm
head (drawn)ISO 10642 flat (countersunk) head: Ø8 × 2.3 mm — head size not printed by Traxxas
used inTraxxas Rustler 2WD XL-5 (1/10 stadium truck, 37054)

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

Traxxas (sheet hosted by der-getriebedoktor.de)Rustler: TQ 2.4 GHz Radio (Model 37054-8) Parts List, REV. 230705 1013, p. 3webPublisher's page; dimensions are facts

Free files

★ Free files 1 parts. Generated by Xem Studio from the standard; threads are plain cylinders at major diameter. CC BY 4.0. index.json

traxxas-2548-screws-countersunk-machine-100-degree-envelopeM4 × 12 mm, shank as a plain Ø4 cylinder, ISO 10642 flat (countersunk) head Ø8 × 2.3 mmSTEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=traxxas-2548-screws-countersunk-machine-100-degree

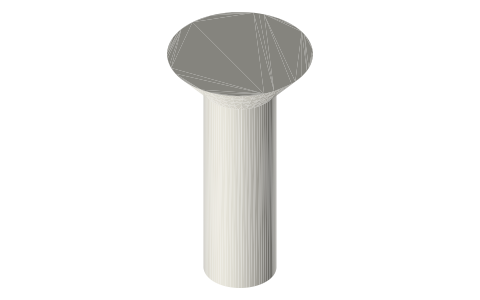

Traxxas 2548 screws, M4 × 12 mm, isometric render of a generated part
Render of traxxas-2548-screws-countersunk-machine-100-degree-envelope from the free STEP; not to scale.

Fits with

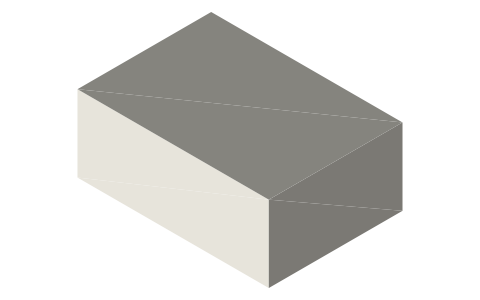

Traxxas Rustler 2WD (37054-8) parts list, isometric render of a generated part
