Traxxas 2581 screws, M3 × 25 mm

What size are Traxxas 2581 screws? · Modern device · basis: Maker's parts list (Traxxas)

Also called: Traxxas 2581, traxxas 2581, Traxxas part 2581, 2581 screws, 3x25mm button-head machine (hex drive), Traxxas 2581 size, Traxxas 2581 dimensions, Traxxas 2581 replacement, repuesto Traxxas 2581, Traxxas 2581 Ersatzteil

Exact dimensions. True size, with no printing tolerance added.

length
5.71 mm
width
5.71 mm
height
26.66 mm

Notes

  • Traxxas part 2581: Screws, 3x25mm button-head machine (hex drive) (6). Size exactly as printed in Traxxas's parts list; the file is built from that size only.
  • M3 × 25 mm, shank as a plain Ø3 cylinder, ISO 7380 button head Ø5.7 × 1.65 mm.
  • True size, no printing tolerance added.
  • Traxxas prints the thread and length; the head is drawn to the ISO 7380 button head standard (from the catalog's screw page) because the maker gives no head size.

Traxxas 2581 screws, M3 × 25 mm size chart

dimensionvalue
part numberTraxxas 2581
name (as printed)Screws, 3x25mm button-head machine (hex drive) (6)
size (as printed)3x25mm button-head machine (hex drive)
threadM3
length25 mm
head (drawn)ISO 7380 button head: Ø5.7 × 1.65 mm — head size not printed by Traxxas
used inTraxxas TRX-4 2021 Ford Bronco (1/10 crawler, 92076-4)

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

Traxxas (sheet hosted by Monsterhopups)TRX-4 Unassembled Kit (Model 82016-4) parts list, REV. 230615 0246, p. 3webPublisher's page; dimensions are facts

Free files

★ Free files 1 parts. Generated by Xem Studio from the standard; threads are plain cylinders at major diameter. CC BY 4.0. index.json

traxxas-2581-screws-3x25mm-button-head-machine-hex-drive-envelopeM3 × 25 mm, shank as a plain Ø3 cylinder, ISO 7380 button head Ø5.7 × 1.65 mmSTEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=traxxas-2581-screws-3x25mm-button-head-machine-hex-drive

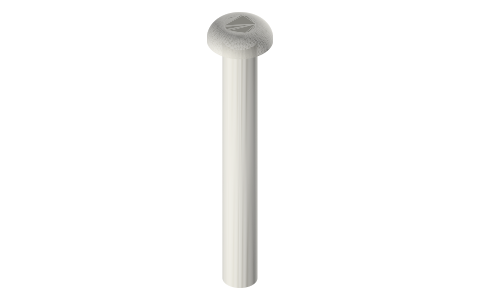

Traxxas 2581 screws, M3 × 25 mm, isometric render of a generated part
