Traxxas 2617 screws, M2.5 × 8 mm

What size are Traxxas 2617 screws? · Modern device · basis: Maker's parts list (Traxxas)

Also called: Traxxas 2617, traxxas 2617, Traxxas part 2617, 2617 screws, 2.5x8mm button-head machine (hex drive), Traxxas 2617 size, Traxxas 2617 dimensions, Traxxas 2617 replacement, repuesto Traxxas 2617, Traxxas 2617 Ersatzteil

Exact dimensions. True size, with no printing tolerance added.

length
4.71 mm
width
4.71 mm
height
9.51 mm

Notes

  • Traxxas part 2617: Screws, 2.5x8mm button-head machine (hex drive) (6). Size exactly as printed in Traxxas's parts list; the file is built from that size only.
  • M2.5 × 8 mm, shank as a plain Ø2.5 cylinder, ISO 7380 button head Ø4.7 × 1.5 mm.
  • True size, no printing tolerance added.
  • Traxxas prints the thread and length; the head is drawn to the ISO 7380 button head standard (from the catalog's screw page) because the maker gives no head size.

Traxxas 2617 screws, M2.5 × 8 mm size chart

dimensionvalue
part numberTraxxas 2617
name (as printed)Screws, 2.5x8mm button-head machine (hex drive) (6)
size (as printed)2.5x8mm button-head machine (hex drive)
threadM2.5
length8 mm
head (drawn)ISO 7380 button head: Ø4.7 × 1.5 mm — head size not printed by Traxxas
used inTraxxas TRX-4 2021 Ford Bronco (1/10 crawler, 92076-4)

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

Traxxas (sheet hosted by Monsterhopups)TRX-4 Unassembled Kit (Model 82016-4) parts list, REV. 230615 0246, p. 2webPublisher's page; dimensions are facts

Free files

★ Free files 1 parts. Generated by Xem Studio from the standard; threads are plain cylinders at major diameter. CC BY 4.0. index.json

traxxas-2617-screws-2-5x8mm-button-head-machine-hex-drive-envelopeM2.5 × 8 mm, shank as a plain Ø2.5 cylinder, ISO 7380 button head Ø4.7 × 1.5 mmSTEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=traxxas-2617-screws-2-5x8mm-button-head-machine-hex-drive

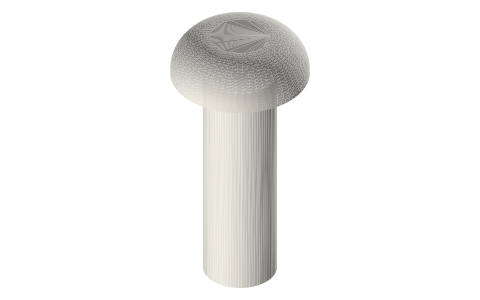

Traxxas 2617 screws, M2.5 × 8 mm, isometric render of a generated part
Render of traxxas-2617-screws-2-5x8mm-button-head-machine-hex-drive-envelope from the free STEP; not to scale.

Fits with

Traxxas TRX-4 kit (82016-4) parts list, isometric render of a generated part
Traxxas TRX-4 kit (82016-4) parts list584×249×239 mm★ 47 files
length
Traxxas TRX-4 2021 Ford Bronco (1/10 crawler, 92076-4)584×249×239 mm★ 1 file
Socket head cap screws, M2–M8 (ISO 4762 / DIN 912), isometric render of a generated part
Socket head cap screws, M2–M8 (ISO 4762 / DIN 912)7 sizes★ 47 files
Button head socket screws, M2–M8 (ISO 7380), isometric render of a generated part
Button head socket screws, M2–M8 (ISO 7380)7 sizes★ 35 files
Countersunk socket screws, M2–M8 (ISO 10642 / DIN 7991), isometric render of a generated part
Countersunk socket screws, M2–M8 (ISO 10642 / DIN 7991)7 sizes★ 35 files

Questions

What size are Traxxas 2617 screws?

M2.5 × 8 mm
