Traxxas 2618 screws, M2.5 × 16 mm

What size are Traxxas 2618 screws? · Modern device · basis: Maker's parts list (Traxxas)

Also called: Traxxas 2618, traxxas 2618, Traxxas part 2618, 2618 screws, 2.5x16mm cap-head machine, Traxxas 2618 size, Traxxas 2618 dimensions, Traxxas 2618 replacement, repuesto Traxxas 2618, Traxxas 2618 Ersatzteil

Exact dimensions. True size, with no printing tolerance added.

length
4.5 mm
width
4.5 mm
height
18.5 mm

Notes

  • Traxxas part 2618: Screws, 2.5x16mm cap-head machine (6). Size exactly as printed in Traxxas's parts list; the file is built from that size only.
  • M2.5 × 16 mm, shank as a plain Ø2.5 cylinder, ISO 4762 cap head Ø4.5 × 2.5 mm.
  • True size, no printing tolerance added.
  • Traxxas prints the thread and length; the head is drawn to the ISO 4762 cap head standard (from the catalog's screw page) because the maker gives no head size.

Traxxas 2618 screws, M2.5 × 16 mm size chart

dimensionvalue
part numberTraxxas 2618
name (as printed)Screws, 2.5x16mm cap-head machine (6)
size (as printed)2.5x16mm cap-head machine
threadM2.5
length16 mm
head (drawn)ISO 4762 cap head: Ø4.5 × 2.5 mm — head size not printed by Traxxas
used inTraxxas TRX-4 2021 Ford Bronco (1/10 crawler, 92076-4)

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

Traxxas (sheet hosted by Monsterhopups)TRX-4 Unassembled Kit (Model 82016-4) parts list, REV. 230615 0246, p. 2webPublisher's page; dimensions are facts

Free files

★ Free files 1 parts. Generated by Xem Studio from the standard; threads are plain cylinders at major diameter. CC BY 4.0. index.json

traxxas-2618-screws-2-5x16mm-cap-head-machine-envelopeM2.5 × 16 mm, shank as a plain Ø2.5 cylinder, ISO 4762 cap head Ø4.5 × 2.5 mmSTEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=traxxas-2618-screws-2-5x16mm-cap-head-machine

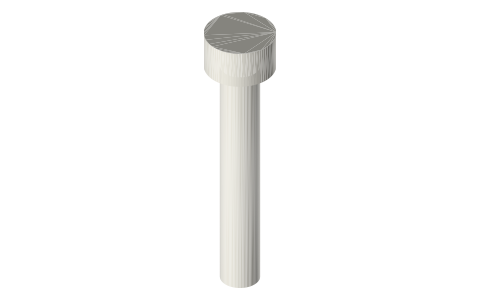

Traxxas 2618 screws, M2.5 × 16 mm, isometric render of a generated part
