Traxxas 2728 ball bearing, 5 × 8 × 2.5 mm

What size is Traxxas bearing 2728? · Modern device · basis: Maker's parts list (Traxxas)

Also called: Traxxas 2728, traxxas 2728, Traxxas part 2728, 2728 ball bearings (5x8x2.5mm), Traxxas 2728 size, Traxxas 2728 dimensions, Traxxas 2728 replacement, repuesto Traxxas 2728, Traxxas 2728 Ersatzteil

Exact dimensions. True size, with no printing tolerance added.

length
8.01 mm
width
8.01 mm
height
2.51 mm

Notes

  • Traxxas part 2728: Ball bearings (5x8x2.5mm) (2). Size exactly as printed in Traxxas's parts list; the file is built from that size only.
  • Bearing envelope 5 × 8 × 2.5 mm (bore × OD × width).
  • True size, no printing tolerance added.

Traxxas 2728 ball bearing, 5 × 8 × 2.5 mm size chart

dimensionvalue
part numberTraxxas 2728
name (as printed)Ball bearings (5x8x2.5mm) (2)
size (as printed)5x8x2.5mm
bore5 mm
outside diameter8 mm
width2.5 mm
seals / ballsas printed in the name; not modelled
used inTraxxas Slash 2WD (1/10 short course truck, 58034)

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

Traxxas (sheet hosted by JEGS)Slash 2WD Unassembled Kit (Model 58014-4) parts list, REV. 201103 1248, p. 1webPublisher's page; dimensions are facts

Free files

★ Free files 1 parts. Generated by Xem Studio from the standard; threads are plain cylinders at major diameter. CC BY 4.0. index.json

traxxas-2728-ball-bearings-5x8x2-5mm-envelopeBearing envelope 5 × 8 × 2.5 mm (bore × OD × width)STEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=traxxas-2728-ball-bearings-5x8x2-5mm

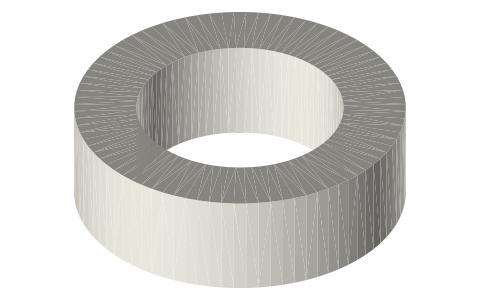

Traxxas 2728 ball bearing, 5 × 8 × 2.5 mm, isometric render of a generated part
Render of traxxas-2728-ball-bearings-5x8x2-5mm-envelope from the free STEP; not to scale.

Fits with

Traxxas Slash 2WD kit (58014-4) parts list, isometric render of a generated part
Traxxas Slash 2WD kit (58014-4) parts list578×296×214 mm★ 43 files
length
Traxxas Slash 2WD (1/10 short course truck, 58034)578×296×214 mm★ 1 file
Ball bearings, 683 to 6210 and flanged F6xx (ISO 15), isometric render of a generated part
Ball bearings, 683 to 6210 and flanged F6xx (ISO 15)44 sizes★ 44 files

Questions

What size is Traxxas bearing 2728?

5 × 8 × 2.5 mm
