Traxxas 3167 screws, M4 × 15 mm

What size are Traxxas 3167 screws? · Modern device · basis: Maker's parts list (Traxxas)

Also called: Traxxas 3167, traxxas 3167, Traxxas part 3167, 3167 screws, countersunk machine, Traxxas 3167 size, Traxxas 3167 dimensions, Traxxas 3167 replacement, repuesto Traxxas 3167, Traxxas 3167 Ersatzteil

Exact dimensions. True size, with no printing tolerance added.

length
8.04 mm
width
8.04 mm
height
17.32 mm

Notes

  • Traxxas part 3167: Screws, countersunk machine. Size exactly as printed in Traxxas's parts list; the file is built from that size only.
  • M4 × 15 mm, shank as a plain Ø4 cylinder, ISO 10642 flat (countersunk) head Ø8 × 2.3 mm.
  • True size, no printing tolerance added.
  • Traxxas prints the thread and length; the head is drawn to the ISO 10642 flat (countersunk) head standard (from the catalog's screw page) because the maker gives no head size.

Traxxas 3167 screws, M4 × 15 mm size chart

dimensionvalue
part numberTraxxas 3167
name (as printed)Screws, countersunk machine
size (as printed)4x15mm countersunk machine
threadM4
length15 mm
head (drawn)ISO 10642 flat (countersunk) head: Ø8 × 2.3 mm — head size not printed by Traxxas
used inTraxxas Rustler 2WD XL-5 (1/10 stadium truck, 37054)

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

Traxxas (sheet hosted by der-getriebedoktor.de)Rustler: TQ 2.4 GHz Radio (Model 37054-8) Parts List, REV. 230705 1013, p. 3webPublisher's page; dimensions are facts

Free files

★ Free files 1 parts. Generated by Xem Studio from the standard; threads are plain cylinders at major diameter. CC BY 4.0. index.json

traxxas-3167-screws-countersunk-machine-envelopeM4 × 15 mm, shank as a plain Ø4 cylinder, ISO 10642 flat (countersunk) head Ø8 × 2.3 mmSTEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=traxxas-3167-screws-countersunk-machine

Traxxas 3167 screws, M4 × 15 mm, isometric render of a generated part

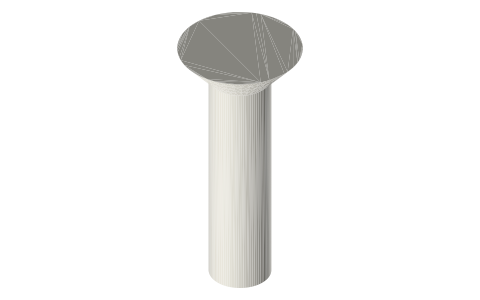

Render of traxxas-3167-screws-countersunk-machine-envelope from the free STEP; not to scale.
