Traxxas 3752 ball bearing, 5 × 11 × 4 mm

What size is Traxxas bearing 3752? · Modern device · basis: Maker's parts list (Traxxas)

Also called: Traxxas 3752, traxxas 3752, Traxxas part 3752, 3752 stub axle carriers (requires 5x11x4mm bearings), Traxxas 3752 size, Traxxas 3752 dimensions, Traxxas 3752 replacement, repuesto Traxxas 3752, Traxxas 3752 Ersatzteil

Exact dimensions. True size, with no printing tolerance added.

length
11.01 mm
width
11.01 mm
height
4.01 mm

Notes

  • Traxxas part 3752: Stub axle carriers (2) (requires 5x11x4mm bearings). Size exactly as printed in Traxxas's parts list; the file is built from that size only.
  • Bearing envelope 5 × 11 × 4 mm (bore × OD × width).
  • True size, no printing tolerance added.

Traxxas 3752 ball bearing, 5 × 11 × 4 mm size chart

dimensionvalue
part numberTraxxas 3752
name (as printed)Stub axle carriers (2) (requires 5x11x4mm bearings)
size (as printed)5x11x4mm
bore5 mm
outside diameter11 mm
width4 mm
seals / ballsas printed in the name; not modelled
used inTraxxas Slash 2WD (1/10 short course truck, 58034)

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

Traxxas (sheet hosted by JEGS)Slash 2WD Unassembled Kit (Model 58014-4) parts list, REV. 201103 1248, p. 3webPublisher's page; dimensions are facts

Free files

★ Free files 1 parts. Generated by Xem Studio from the standard; threads are plain cylinders at major diameter. CC BY 4.0. index.json

traxxas-3752-stub-axle-carriers-requires-5x11x4mm-bearings-envelopeBearing envelope 5 × 11 × 4 mm (bore × OD × width)STEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=traxxas-3752-stub-axle-carriers-requires-5x11x4mm-bearings

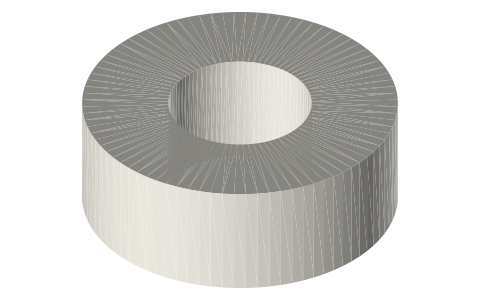

Traxxas 3752 ball bearing, 5 × 11 × 4 mm, isometric render of a generated part
Render of traxxas-3752-stub-axle-carriers-requires-5x11x4mm-bearings-envelope from the free STEP; not to scale.

Fits with

Traxxas Slash 2WD kit (58014-4) parts list, isometric render of a generated part
Traxxas Slash 2WD kit (58014-4) parts list578×296×214 mm★ 43 files
length
Traxxas Slash 2WD (1/10 short course truck, 58034)578×296×214 mm★ 1 file
Ball bearings, 683 to 6210 and flanged F6xx (ISO 15), isometric render of a generated part
Ball bearings, 683 to 6210 and flanged F6xx (ISO 15)44 sizes★ 44 files

Questions

What size is Traxxas bearing 3752?

5 × 11 × 4 mm
