Traxxas 4683 83-tooth 48-pitch gear

What size is Traxxas 4683 gear? · Modern device · basis: Maker's parts list (Traxxas)

Also called: Traxxas 4683, traxxas 4683, Traxxas part 4683, 4683 spur gear, 83-tooth (48-pitch) (for models with torque-control slipper clutch), Traxxas 4683 size, Traxxas 4683 dimensions, Traxxas 4683 replacement, repuesto Traxxas 4683, Traxxas 4683 Ersatzteil

Exact dimensions. True size, with no printing tolerance added.

length
44.97 mm
width
44.98 mm
height
1.0 mm

Notes

  • Traxxas part 4683: Spur gear, 83-tooth (48-pitch) (for models with Torque-Control slipper clutch). Size exactly as printed in Traxxas's parts list; the file is built from that size only.
  • 83-tooth 48-pitch gear, 20° involute, module 0.5292 mm, Ø44.98 OD — 1 mm reference (face width not printed).
  • True size, no printing tolerance added.

Traxxas 4683 83-tooth 48-pitch gear size chart

dimensionvalue
part numberTraxxas 4683
name (as printed)Spur gear, 83-tooth (48-pitch) (for models with Torque-Control slipper clutch)
size (as printed)83-tooth; 48-pitch
teeth83
pitch48 diametral pitch (module 0.5292 mm)
pitch diameter43.92 mm
outside diameter44.98 mm (standard addendum)
borenot printed
face widthnot printed
used inTraxxas Rustler 2WD XL-5 (1/10 stadium truck, 37054), Traxxas Slash 2WD (1/10 short course truck, 58034)

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

Traxxas (sheet hosted by JEGS)Slash 2WD Unassembled Kit (Model 58014-4) parts list, REV. 201103 1248, p. 4webPublisher's page; dimensions are facts

Free files

★ Free files 1 parts. Generated by Xem Studio from the standard; threads are plain cylinders at major diameter. CC BY 4.0. index.json

traxxas-4683-spur-gear-83-tooth-48-pitch-for-models-with-torque-control-slipper-profile83-tooth 48-pitch gear, 20° involute, module 0.5292 mm, Ø44.98 OD — 1 mm reference (face width not printed)STEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=traxxas-4683-spur-gear-83-tooth-48-pitch-for-models-with-torque-control-slipper

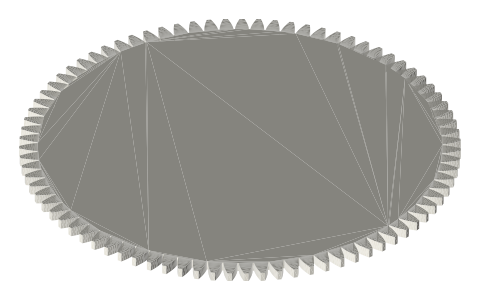

Traxxas 4683 83-tooth 48-pitch gear, isometric render of a generated part
Render of traxxas-4683-spur-gear-83-tooth-48-pitch-for-models-with-torque-control-slipper-profile from the free STEP; not to scale.
