Traxxas Velineon 3500 Kv brushless motor (540-size can)

What are the dimensions of the Traxxas Velineon 3500 Kv brushless motor? · Modern device · basis: Manufacturer specifications (Traxxas)

Also called: velineon 3500 dimensions, velineon 3500 size, traxxas 3351 motor size, velineon motor length, velineon 3500 shaft size, traxxas brushless motor diameter, medidas motor velineon, velineon 3500 maße, traxxas velineon 3500 kv brushless motor specs

Exact dimensions. True size, with no printing tolerance added.

length
36 mm
width
36 mm
height
77 mm

Notes

  • The Velineon 3500 is the sensorless brushless motor in the Slash 4X4 VXL, Stampede 4X4 VXL and other 1/10 Traxxas VXL models. The file is the Ø36 × 56 mm can.
  • Mounting-screw pattern and shaft length beyond the can are not published separately.
  • True size, no printing tolerance added. Only published numbers are used; anything not published is said so.

Traxxas Velineon 3500 Kv brushless motor size chart

dimensionvalue
Diameter1.41 in (36 mm)
Can length2.2 in (56 mm)
Overall length3.03 in (77 mm)
Shaft3 mm
Weight9.24 oz (262 g)
Kv3500
Motor connectors3.5 mm bullet

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

TraxxasSlash 4X4 VXL 68386-4 (motor specifications)webPublisher's page; dimensions are facts

Free files

★ Free files 1 parts. Generated by Xem Studio from the standard; threads are plain cylinders at major diameter. CC BY 4.0. index.json

traxxas-velineon-3500-motor-envelopeEnvelope Ø36 × 56 mm (Motor including output shaft (overall length); the file models the 56 mm can)STEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=traxxas-velineon-3500-motor

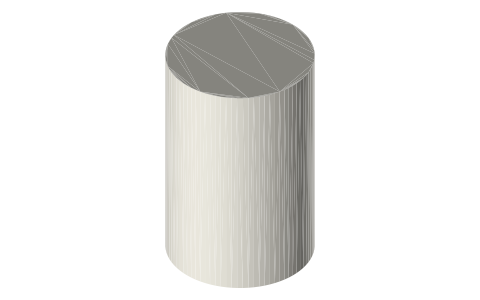

Traxxas Velineon 3500 Kv brushless motor (540-size can), isometric render of a generated part
Render of traxxas-velineon-3500-motor-envelope from the free STEP; not to scale.

Fits with

RC plane outrunners (2212, 2216, 2826, 3508, 4110, 6374) and car inrunners (540 / 3650, 4274, 1/8 scale), isometric render of a generated part
RC plane outrunners (2212, 2216, 2826, 3508, 4110, 6374) and car inrunners (540 / 3650, 4274, 1/8 scale)12 sizes★ 5 files
Traxxas Velineon 540XL 2400 Kv brushless motor, isometric render of a generated part
Traxxas Velineon 540XL 2400 Kv brushless motor36×36×91 mm★ 1 file

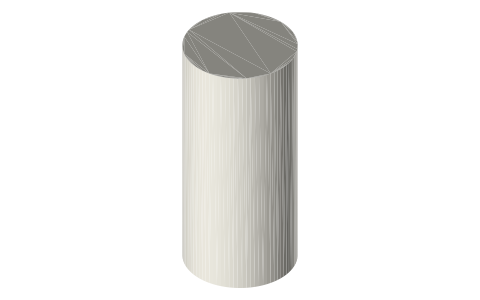

Traxxas BL-2s 3300 Kv brushless motor, isometric render of a generated part
Traxxas BL-2s 3300 Kv brushless motor36×36×80 mm★ 1 file

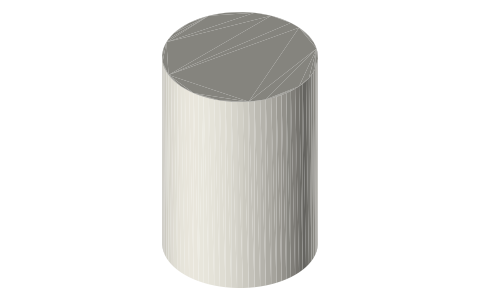

Traxxas Titan 21T 550 reverse-rotation brushed motor (TRX-4), isometric render of a generated part
