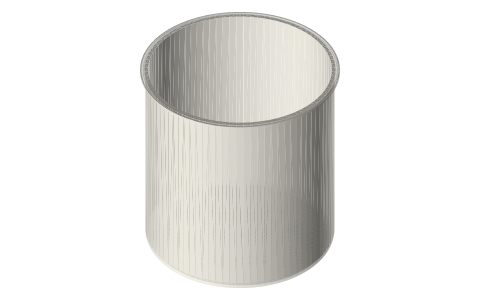

Tri-clamp vessel, 10 in: closed-bottom pots 2 to 24 in deep (flat, dished, round)

Name: Tri-clamp vessel, 10 in: closed-bottom pots 2 to 24 in deep (flat, dished, round) dimension sheet
Creator: Xem Studio
License: https://creativecommons.org/licenses/by/4.0/

What sizes of 10 inch tri-clamp pot or closed-end spool are there? · Hardware · basis: Xem Studio design: 10 in sanitary tube Ø254.0 × 3.40 with an ISO 2852 clamp face on top and a welded bottom — flat plate (tube-wall thick), flanged-and-dished (crown R = OD, knuckle 6 %) or hemispherical

Also called: 10 inch tri clamp pot, 10 in tri clamp vessel, 10 inch tri clamp closed end, 10 x 12 tri clamp, tri clamp dish 10 inch, tri clamp cup 10 inch, 10 inch tri clamp fermenter, recipiente tri clamp 10 pulgadas, Tri-Clamp Behälter 10 Zoll

Exact dimensions. True size, with no printing tolerance added.

sizes: 9 in table

Notes

A 10 in tri-clamp pot: one clamp face, closed bottom. Depth is measured from the clamp face to the outside of the bottom; capacity is to the face plane.
Every size here is the actual size of the metal part, with no printing allowance. The printable 45° version is printable-tri-clamp-vessel-10in (not made: a 10 in flange is wider than a 256 mm print bed).

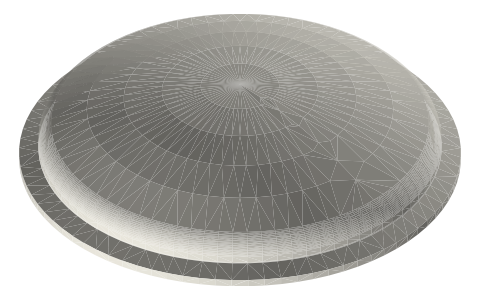

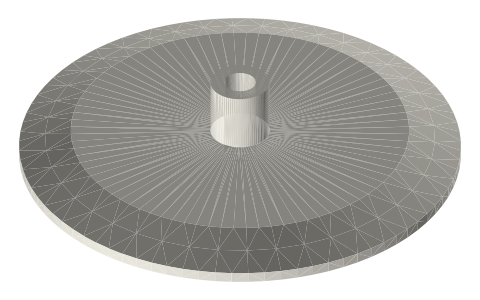

Close it with any cap, dome lid or ported cap of the same size, a clamp and a gasket.
Every clamp face is the ISO 2852 profile used across this site: 2.85 mm rim, flat face with the gasket groove (K 1.6 deep, R3 1.2 bottom, 23° walls, P2 0.8 edges) on C2, 20° back cone. Flange C3 / groove C2 / tube OD × wall, mm: ½–¾ in 25.0 / 20.4 (derived) / 12.7–19.05 × 1.65; 1–1½ in 50.5 / 43.5 / 25.4–38.1 × 1.65; 2 in 64.0 / 56.5 / 50.8 × 1.65; 2½ in 77.5 / 70.5 / 63.5 × 1.65; 3 in 91.0 / 83.5 / 76.2 × 1.65; 4 in 119.0 / 110.0 / 101.6 × 2.11; 6 in 166.9 (6.570 in) / 156.5 / 152.4 × 2.77; 8 in 217.7 (8.570 in) / 207.0 / 203.2 × 2.77; 10 in 268.5 / 261.0 / 254.0 × 3.40; 12 in 319.3 / 311.8 / 304.8 × 3.40.

Tri-clamp vessel, 10 in: closed-bottom pots 2 to 24 in deep size chart

depth (in)	depth (mm)	flat L	dished L	round L
2	50.8	2.27	—	—
3	76.2	3.49	2.72	—
4	101.6	4.71	3.94	—
6	152.4	7.15	6.38	5.17
8	203.2	9.59	8.82	7.61
10	254.0	12.03	11.26	10.05
12	304.8	14.46	13.69	12.49
18	457.2	21.78	21.01	19.8
24	609.6	29.09	28.32	27.11

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

ASME	Flanged and dished (F&D) heads: crown radius = OD, knuckle radius 6 % of OD (BPVC Section VIII torispherical head)	standard	ASME; proportions are facts verify
GW Kent	Tri-clamp fittings guide: tube OD, flange OD and ID per size to 12 in; solid cap thickness	web	publisher's guide; dimensions cited
Rubber Fab	Tri-clamp dimensions chart (ID, OD, bead per clamp size, ½ to 12 in and DIN 32676)	PDF	publisher's chart; dimensions cited, nothing copied
Rubber Fab	Tri-Clamp gasket dimensional chart: gasket ID, OD and bead diameter per size (2 in bead 2.22 in / 56.50 mm, 1.5 in 1.71 / 43.50, 3 in 3.29 / 83.50)	PDF	maker chart; dimensions are facts verify

Free files

★ Free files 23 parts. Generated by Xem Studio from the standard; threads are plain cylinders at major diameter. CC BY 4.0. index.json

vessel-10in-x-2in-flat	10 × 2 in, flat bottom: 50.8 mm face to bottom, holds 2.27 L to the face	STEP · STL
vessel-10in-x-3in-flat	10 × 3 in, flat bottom: 76.2 mm face to bottom, holds 3.49 L to the face	STEP · STL
vessel-10in-x-3in-dished	10 × 3 in, dished bottom: 76.2 mm face to bottom, holds 2.72 L to the face	STEP · STL
vessel-10in-x-4in-flat	10 × 4 in, flat bottom: 101.6 mm face to bottom, holds 4.71 L to the face	STEP · STL
vessel-10in-x-4in-dished	10 × 4 in, dished bottom: 101.6 mm face to bottom, holds 3.94 L to the face	STEP · STL
vessel-10in-x-6in-flat	10 × 6 in, flat bottom: 152.4 mm face to bottom, holds 7.15 L to the face	STEP · STL
vessel-10in-x-6in-dished	10 × 6 in, dished bottom: 152.4 mm face to bottom, holds 6.38 L to the face	STEP · STL
vessel-10in-x-6in-round	10 × 6 in, round bottom: 152.4 mm face to bottom, holds 5.17 L to the face	STEP · STL
vessel-10in-x-8in-flat	10 × 8 in, flat bottom: 203.2 mm face to bottom, holds 9.59 L to the face	STEP · STL
vessel-10in-x-8in-dished	10 × 8 in, dished bottom: 203.2 mm face to bottom, holds 8.82 L to the face	STEP · STL
vessel-10in-x-8in-round	10 × 8 in, round bottom: 203.2 mm face to bottom, holds 7.61 L to the face	STEP · STL
vessel-10in-x-10in-flat	10 × 10 in, flat bottom: 254.0 mm face to bottom, holds 12.03 L to the face	STEP · STL
vessel-10in-x-10in-dished	10 × 10 in, dished bottom: 254.0 mm face to bottom, holds 11.26 L to the face	STEP · STL
vessel-10in-x-10in-round	10 × 10 in, round bottom: 254.0 mm face to bottom, holds 10.05 L to the face	STEP · STL
vessel-10in-x-12in-flat	10 × 12 in, flat bottom: 304.8 mm face to bottom, holds 14.46 L to the face	STEP · STL
vessel-10in-x-12in-dished	10 × 12 in, dished bottom: 304.8 mm face to bottom, holds 13.69 L to the face	STEP · STL
vessel-10in-x-12in-round	10 × 12 in, round bottom: 304.8 mm face to bottom, holds 12.49 L to the face	STEP · STL
vessel-10in-x-18in-flat	10 × 18 in, flat bottom: 457.2 mm face to bottom, holds 21.78 L to the face	STEP · STL
vessel-10in-x-18in-dished	10 × 18 in, dished bottom: 457.2 mm face to bottom, holds 21.01 L to the face	STEP · STL
vessel-10in-x-18in-round	10 × 18 in, round bottom: 457.2 mm face to bottom, holds 19.80 L to the face	STEP · STL
vessel-10in-x-24in-flat	10 × 24 in, flat bottom: 609.6 mm face to bottom, holds 29.09 L to the face	STEP · STL
vessel-10in-x-24in-dished	10 × 24 in, dished bottom: 609.6 mm face to bottom, holds 28.32 L to the face	STEP · STL
vessel-10in-x-24in-round	10 × 24 in, round bottom: 609.6 mm face to bottom, holds 27.11 L to the face	STEP · STL
