X-UAV Mini Talon 1300mm V-tail

What are the dimensions of the X-UAV Mini Talon 1300mm V-tail? · Modern device · basis: Secondary source: Racer.lt (retailer) (copy of the maker's figures; the maker publishes none directly)

Also called: mini talon dimensions, x-uav mini talon wingspan, mini talon length, eachine mini talon, mini talon motor, mini talon prop, mini talon battery, mini talon spannweite, mini talon envergadura

Exact dimensions. True size, with no printing tolerance added.

length
830 mm
width
1300 mm

Notes

  • Retailer copy of X-UAV specs (secondary). Also sold under the Eachine name. Plan-view envelope only.
  • True size, no printing tolerance added. Only published numbers are used; anything not published is said so.
  • Secondary source: the numbers come from a retailer or magazine copy of the maker's specification.

X-UAV Mini Talon 1300mm V-tail size chart

dimensionvalue
Wingspan1300 mm
Length830 mm
Flying weight1000–2000 g
Motor2836 1300 Kv
ESC30 A
Propeller9 × 4.5
Servos4 × 9 g
Battery4S 5000 mAh recommended (up to 4S 10000 mAh)
Heightnot published

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

Racer.lt (retailer)X-uav Mini Talon EPO 1300mm PNPwebPublisher's page; dimensions are facts

Free files

★ Free files 1 parts. Generated by Xem Studio from the standard; threads are plain cylinders at major diameter. CC BY 4.0. index.json

x-uav-mini-talon-1300mm-plan-outlinePlan outline 830 × 1300 mm, 1 mm reference thickness (height not published)STEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=x-uav-mini-talon-1300mm

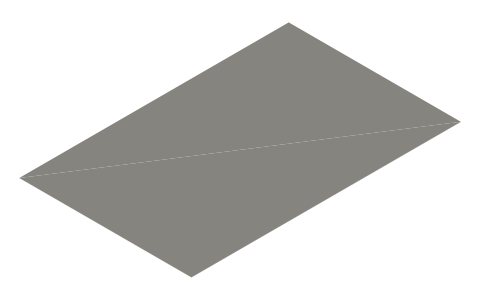

X-UAV Mini Talon 1300mm V-tail, isometric render of a generated part
Render of x-uav-mini-talon-1300mm-plan-outline from the free STEP; not to scale.

Fits with

RC LiPo battery sizes: ROAR 2S hardcase, shorty, saddle, 4S brick; drone 4S / 6S and 3S 2200 packs; connectors, isometric render of a generated part
RC LiPo battery sizes: ROAR 2S hardcase, shorty, saddle, 4S brick; drone 4S / 6S and 3S 2200 packs; connectors12 sizes★ 4 files
FPV camera sizes (nano 14, micro 19, mini 22, full 28 mm) and DJI O3 / O4 air unit dimensions, isometric render of a generated part
FPV camera sizes (nano 14, micro 19, mini 22, full 28 mm) and DJI O3 / O4 air unit dimensions8 sizes★ 5 files
ZOHD Nano Talon EVO 860mm, isometric render of a generated part
ZOHD Nano Talon EVO 860mm570×860 mm★ 1 file
ZOHD Dart 250G 570mm, isometric render of a generated part
ZOHD Dart 250G 570mm379×570 mm★ 1 file
ZOHD Talon 250G 620mm, isometric render of a generated part
ZOHD Talon 250G 620mm452×620 mm★ 1 file
Sonicmodell AR Wing Classic 900mm, isometric render of a generated part
Sonicmodell AR Wing Classic 900mm482×900 mm★ 1 file

Questions

What prop does the Mini Talon use?

A 9 × 4.5 on a 2836 1300 Kv motor.
