CamelBak Chute Mag 32 oz bottle

What are the dimensions of the CamelBak Chute Mag 32 oz bottle? · Modern device · basis: CamelBak product page (style CB-2469)

Also called: camelbak chute mag 32 oz dimensions, chute mag size, camelbak 32oz bottle diameter, reusable plastic water bottle, botella camelbak medidas, garrafa camelbak medidas, CamelBak Flasche Maße, CamelBak Chute Mag 32 oz bottle medidas, CamelBak Chute Mag 32 oz bottle dimensões, CamelBak Chute Mag 32 oz bottle Maße, CamelBak Chute Mag 32 oz bottle dimensions

Exact dimensions. True size, with no printing tolerance added.

length
95 mm
width
95 mm
height
245 mm

Notes

  • The CamelBak Chute Mag 32 oz bottle (Tritan Renew, style CB-2469) is listed as 24.5 × 9.5 × 9.5 cm and 192 g (CamelBak; axes not labelled, read as height × diameter).
  • The file is a cylinder envelope Ø95 × 245 mm at the published size, true size, no printing allowance. Cap, handle and taper are not modelled.

CamelBak Chute Mag 32 oz bottle size chart

dimensionvalue
capacity32 oz (about 1 L)
height245 mm
diameter95 mm
weight192 g
cap and handleinside the published size; detail not published

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

CamelBakChute Mag 32oz bottle with Tritan RenewwebPublisher's page; dimensions are facts

Free files

★ Free files 1 parts. Generated by Xem Studio from the standard; threads are plain cylinders at major diameter. CC BY 4.0. index.json

camelbak-chute-mag-32-oz-bottle-envelopeA cylinder envelope Ø95 × 245 mm (Cap, handle and taper are not modelled)STEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=camelbak-chute-mag-32-oz-bottle

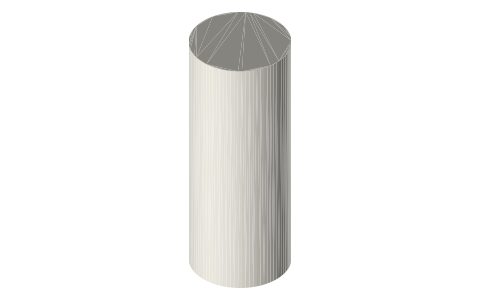

CamelBak Chute Mag 32 oz bottle, isometric render of a generated part
Render of camelbak-chute-mag-32-oz-bottle-envelope from the free STEP; not to scale.

Fits with

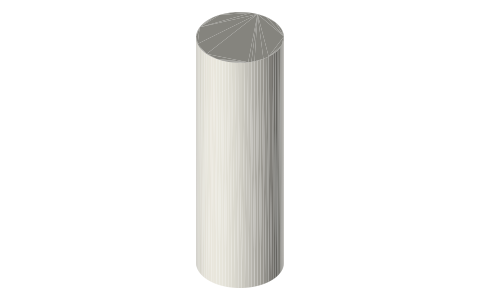

Petainer 500 mL PET water bottle (28 mm PCO 1810, straight), isometric render of a generated part
