Petainer 500 mL PET water bottle (28 mm PCO 1810, straight)

What are the dimensions of the Petainer 500 mL PET water bottle (28 mm PCO 1810, straight)? · Modern device · basis: Petainer catalogue page (bottle maker)

Also called: 500ml water bottle dimensions, 16.9 oz water bottle size, plastic water bottle, pet bottle dimensions, water bottle diameter, botella de agua 500 ml medidas, garrafa pet 500ml medidas, PET Flasche 500 ml Maße

Exact dimensions. True size, with no printing tolerance added.

length
65 mm
width
65 mm
height
204 mm

Notes

  • Petainer's 500 mL straight PET water bottle is 204 mm tall and Ø65 mm, with a 28 mm PCO 1810 neck, and weighs 24 g empty (Petainer).
  • The file is a cylinder envelope Ø65 × 204 mm at the published size, true size, no printing allowance. Shoulder, neck and base are not modelled.

Petainer 500 mL PET water bottle size chart

dimensionvalue
capacity500 mL (16.9 fl oz)
height204 mm
diameter65 mm
neck finish28 mm PCO 1810
bottle weight24 g
shoulder, base and ribsnot published

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

Petainer500ml water bottle, 28mm PCO 1810, straightwebPublisher's page; dimensions are facts

Free files

★ Free files 1 parts. Generated by Xem Studio from the standard; threads are plain cylinders at major diameter. CC BY 4.0. index.json

petainer-500-ml-pet-water-bottle-pco-1810-envelopeA cylinder envelope Ø65 × 204 mm (Shoulder, neck and base are not modelled)STEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=petainer-500-ml-pet-water-bottle-pco-1810

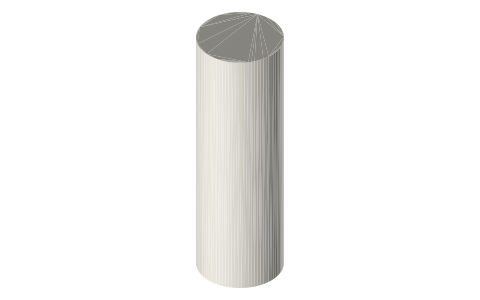

Petainer 500 mL PET water bottle (28 mm PCO 1810, straight), isometric render of a generated part
Render of petainer-500-ml-pet-water-bottle-pco-1810-envelope from the free STEP; not to scale.

Fits with

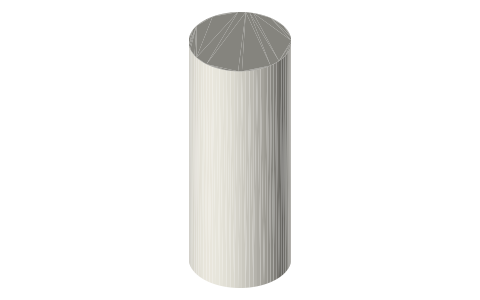

CamelBak Chute Mag 32 oz bottle, isometric render of a generated part
CamelBak Chute Mag 32 oz bottle95×95×245 mm★ 1 file
PET bottle necks: PCO 1881 (soda, 28 mm) and 38 mm (milk/juice), isometric render of a generated part
PET bottle necks: PCO 1881 (soda, 28 mm) and 38 mm (milk/juice)3 sizes★ 2 files
Nalgene 32 oz Wide Mouth, isometric render of a generated part
Nalgene 32 oz Wide Mouth89×89×215 mm★ 1 file

Questions

How big is a 500 mL water bottle?

This Petainer straight bottle: 204 mm tall, Ø65 mm, 28 mm PCO 1810 neck. Brands differ — measure yours for a tight holder.
