Castle Creations 1406 sensored motor (3800 kV)

What are the dimensions of the Castle Creations 1406 sensored motor? · Modern device · basis: Secondary source: Hobby Etc (retailer, Castle spec copy) (copy of the maker's figures; the maker publishes none directly)

Also called: castle 1406 dimensions, 1406 motor size, castle 1406 shaft, 1406 can length, medidas motor castle 1406, castle 1406 maße, castle creations 1406 sensored motor specs, castle creations 1406 sensored motor measurements

Exact dimensions. True size, with no printing tolerance added.

length
36 mm
width
36 mm
height
49.5 mm

Notes

  • The 1406 is Castle's short-can 540-size sensored motor used in crawlers and 1/10 cars. The file is the Ø36 × 49.5 mm can.
  • Numbers come from a retailer listing; mount pattern is not listed there.
  • True size, no printing tolerance added. Only published numbers are used; anything not published is said so.
  • Secondary source: the numbers come from a retailer or magazine copy of the maker's specification.

Castle Creations 1406 sensored motor size chart

dimensionvalue
Can diameter1.4 in (36 mm)
Can length1.9 in (49.5 mm)
Shaft1/8 in (3.17 mm) × 0.59 in (15 mm)
Weight6.9 oz (197 g) with wires
LiPo2–3S

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

Hobby Etc (retailer, Castle spec copy)Mamba X 25.2V WP ESC + 1406-3800kVwebPublisher's page; dimensions are facts

Free files

★ Free files 1 parts. Generated by Xem Studio from the standard; threads are plain cylinders at major diameter. CC BY 4.0. index.json

castle-1406-motor-envelopeEnvelope Ø36 × 49.5 mm (Can only, without shaft)STEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=castle-1406-motor

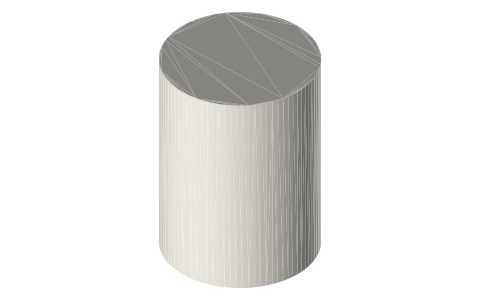

Castle Creations 1406 sensored motor (3800 kV), isometric render of a generated part
Render of castle-1406-motor-envelope from the free STEP; not to scale.

Fits with

RC plane outrunners (2212, 2216, 2826, 3508, 4110, 6374) and car inrunners (540 / 3650, 4274, 1/8 scale), isometric render of a generated part
RC plane outrunners (2212, 2216, 2826, 3508, 4110, 6374) and car inrunners (540 / 3650, 4274, 1/8 scale)12 sizes★ 5 files
Traxxas Velineon 3500 Kv brushless motor (540-size can), isometric render of a generated part
Traxxas Velineon 3500 Kv brushless motor (540-size can)36×36×77 mm★ 1 file
Traxxas Velineon 540XL 2400 Kv brushless motor, isometric render of a generated part
Traxxas Velineon 540XL 2400 Kv brushless motor36×36×91 mm★ 1 file
Traxxas BL-2s 3300 Kv brushless motor, isometric render of a generated part
Traxxas BL-2s 3300 Kv brushless motor36×36×80 mm★ 1 file
Traxxas Titan 21T 550 reverse-rotation brushed motor (TRX-4), isometric render of a generated part
Traxxas Titan 21T 550 reverse-rotation brushed motor (TRX-4)39×39×78 mm★ 1 file

Questions

How big is the Castle 1406?

36 mm diameter, 49.5 mm can, 3.17 × 15 mm shaft.
