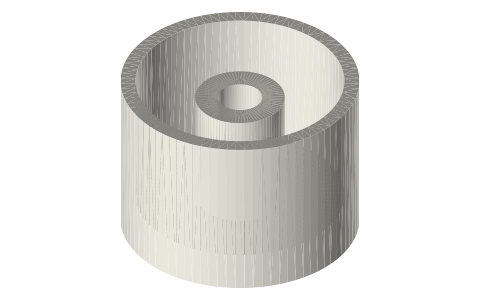

Clearance-seal pistons Ø48.00 × 34 for a bored 2 in spool: rod (gamma) and gland (beta)
What piston goes in a bored and honed 2 in tri-clamp spool? · Hardware · basis: Design values; leakage from plane Poiseuille flow in the clearance (Hagen–Poiseuille)
Long Earth Society build part. My clearance-seal pistons. The engines
Exact dimensions. Every file is drawn at true size with no printing tolerance. The holes and pins that meet another part are listed below under Mating features, with the fit each joint needs; open those by your printer's or process's clearance before making the part. Mating features
- sizes
- 2 in table
Notes
- Ø48.00 × 34, no rings: the ground OD in the honed Ø48.00 bore is the seal. It is driven through a rod and a crosshead guided outside the cylinder, so it carries no side load and keeps its clearance.
- Gamma piston: the Ø8 rod screws into the boss and is locked with an M8 nut on the boss end.
- Beta piston: the displacer rod passes through a 6 × 10 × 10 sleeve bushing at the crown (its gland), and the hollow Ø10 piston rod screws into the boss until it bottoms.
- Leakage loss in the cycle model (charged air, 600 rpm): 0.44 / 1.50 / 3.54 W at 10 / 15 / 20 µm radial clearance on the gamma.
Sizes
| part | od_mm | length_mm | rod |
|---|---|---|---|
| piston-48-gamma-m8 | 48.0 | 34.0 | M8 socket |
| piston-48-beta-gland | 48.0 | 34.0 | gland + M10 × 1 socket |
Mating features
Drawn at the exact size. Open press, slide, run and socket features by your process's clearance; leave designed gaps and clamp fits as drawn.
| feature | exact | mates with | fit | files |
|---|---|---|---|---|
| OD | Ø48.00 × 34 | honed bore Ø48.00 (clearance seal) | run | all |
| rod socket | M8 tapped (Ø6.8) z 8–20 | Ø8 rod, M8 end | designed | piston-48-gamma* |
| gland seat | Ø10 × 10 at the crown | 6 × 10 × 10 sleeve bushing | press | piston-48-beta* |
| tube socket | M10 × 1 tapped (Ø9.0) z 14–30 | hollow rod, M10 × 1 end | designed | piston-48-beta* |
Where the files are
Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.
| Wikipedia | Hagen–Poiseuille equation: annular clearance leakage Q = π D δ³ Δp / 12 μ L | web | CC BY-SA 4.0 (text) |
| Long Earth Society | Engine builds | web, video | LES site |
Free files
★ Free files 2 parts. Generated by Xem Studio from the standard; threads are plain cylinders at major diameter. CC BY 4.0. index.json
| piston-48-gamma-m8 | clearance-seal piston Ø48.00 × 34: crown 6, skirt 3, boss Ø18 with an M8 tapped (Ø6.8) socket z 8–20 for the rod | STEP · STL |
| piston-48-beta-gland | clearance-seal piston Ø48.00 × 34 for a beta: Ø10 × 10 gland seat at the crown (6 × 10 × 10 bushing, the displacer rod's gland), Ø7 on, M10 × 1 tapped (Ø9.0) socket z 14–30 for the hollow rod | STEP · STL |
Plain text: sheet.txt · JSON: /api/geometry?object=stirling-clearance-seal-pistons
How it fits
In these build lists
Tri-clamp horizontal gamma generator, 2 in,…The classic desk Stirling generator in tri-clamp, built for power: a horizontal …Tri-clamp walking-beam gamma generator, 2 in,…The classic desk walking-beam Stirling in tri-clamp: a standard 2 in tee with th…Tri-clamp charged beta, 2 inA standing beta that holds a charge: the same hot spool, liner, regenerator and …Tri-clamp twin walking-beam gamma generator, 2…Two walking-beam tee units side by side on one crank, a quarter turn apart: each…You might also need
Questions
What clearance?
The fit class is a running fit to the honed bore; the leakage table shows what 10, 15 and 20 µm radial cost.
