Traxxas 2542 screws, M4 × 12 mm

What size are Traxxas 2542 screws? · Modern device · basis: Maker's parts list (Traxxas)

Also called: Traxxas 2542, traxxas 2542, Traxxas part 2542, 2542 screws, 4x12mm countersunk machine (hex drive), Traxxas 2542 size, Traxxas 2542 dimensions, Traxxas 2542 replacement, repuesto Traxxas 2542, Traxxas 2542 Ersatzteil

Exact dimensions. True size, with no printing tolerance added.

length
8.04 mm
width
8.04 mm
height
14.32 mm

Notes

  • Traxxas part 2542: Screws, 4x12mm countersunk machine (hex drive) (6). Size exactly as printed in Traxxas's parts list; the file is built from that size only.
  • M4 × 12 mm, shank as a plain Ø4 cylinder, ISO 10642 flat (countersunk) head Ø8 × 2.3 mm.
  • True size, no printing tolerance added.
  • Traxxas prints the thread and length; the head is drawn to the ISO 10642 flat (countersunk) head standard (from the catalog's screw page) because the maker gives no head size.

Traxxas 2542 screws, M4 × 12 mm size chart

dimensionvalue
part numberTraxxas 2542
name (as printed)Screws, 4x12mm countersunk machine (hex drive) (6)
size (as printed)4x12mm countersunk machine (hex drive)
threadM4
length12 mm
head (drawn)ISO 10642 flat (countersunk) head: Ø8 × 2.3 mm — head size not printed by Traxxas
used inTraxxas Slash 2WD (1/10 short course truck, 58034)

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

Traxxas (sheet hosted by JEGS)Slash 2WD Unassembled Kit (Model 58014-4) parts list, REV. 201103 1248, p. 2webPublisher's page; dimensions are facts

Free files

★ Free files 1 parts. Generated by Xem Studio from the standard; threads are plain cylinders at major diameter. CC BY 4.0. index.json

traxxas-2542-screws-4x12mm-countersunk-machine-hex-drive-envelopeM4 × 12 mm, shank as a plain Ø4 cylinder, ISO 10642 flat (countersunk) head Ø8 × 2.3 mmSTEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=traxxas-2542-screws-4x12mm-countersunk-machine-hex-drive

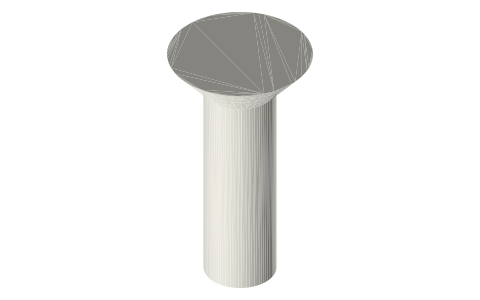

Traxxas 2542 screws, M4 × 12 mm, isometric render of a generated part
