Traxxas 2577 screws, M3 × 10 mm

What size are Traxxas 2577 screws? · Modern device · basis: Maker's parts list (Traxxas)

Also called: Traxxas 2577, traxxas 2577, Traxxas part 2577, 2577 screws, 3x10mm button-head machine (hex drive), Traxxas 2577 size, Traxxas 2577 dimensions, Traxxas 2577 replacement, repuesto Traxxas 2577, Traxxas 2577 Ersatzteil

Exact dimensions. True size, with no printing tolerance added.

length
5.71 mm
width
5.71 mm
height
11.66 mm

Notes

  • Traxxas part 2577: Screws, 3x10mm button-head machine (hex drive) (6). Size exactly as printed in Traxxas's parts list; the file is built from that size only.
  • M3 × 10 mm, shank as a plain Ø3 cylinder, ISO 7380 button head Ø5.7 × 1.65 mm.
  • True size, no printing tolerance added.
  • Traxxas prints the thread and length; the head is drawn to the ISO 7380 button head standard (from the catalog's screw page) because the maker gives no head size.

Traxxas 2577 screws, M3 × 10 mm size chart

dimensionvalue
part numberTraxxas 2577
name (as printed)Screws, 3x10mm button-head machine (hex drive) (6)
size (as printed)3x10mm button-head machine (hex drive)
threadM3
length10 mm
head (drawn)ISO 7380 button head: Ø5.7 × 1.65 mm — head size not printed by Traxxas
used inTraxxas Slash 2WD (1/10 short course truck, 58034), Traxxas TRX-4 2021 Ford Bronco (1/10 crawler, 92076-4)

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

Traxxas (sheet hosted by JEGS)Slash 2WD Unassembled Kit (Model 58014-4) parts list, REV. 201103 1248, p. 2webPublisher's page; dimensions are facts

Free files

★ Free files 1 parts. Generated by Xem Studio from the standard; threads are plain cylinders at major diameter. CC BY 4.0. index.json

traxxas-2577-screws-3x10mm-button-head-machine-hex-drive-envelopeM3 × 10 mm, shank as a plain Ø3 cylinder, ISO 7380 button head Ø5.7 × 1.65 mmSTEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=traxxas-2577-screws-3x10mm-button-head-machine-hex-drive

Traxxas 2577 screws, M3 × 10 mm, isometric render of a generated part

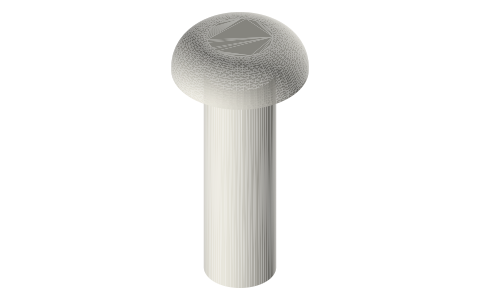

Render of traxxas-2577-screws-3x10mm-button-head-machine-hex-drive-envelope from the free STEP; not to scale.
