Traxxas 2579 screws, M3 × 15 mm

What size are Traxxas 2579 screws? · Modern device · basis: Maker's parts list (Traxxas)

Also called: Traxxas 2579, traxxas 2579, Traxxas part 2579, 2579 screws, 3x15mm button-head machine (hex drive), Traxxas 2579 size, Traxxas 2579 dimensions, Traxxas 2579 replacement, repuesto Traxxas 2579, Traxxas 2579 Ersatzteil

Exact dimensions. True size, with no printing tolerance added.

length
5.71 mm
width
5.71 mm
height
16.66 mm

Notes

  • Traxxas part 2579: Screws, 3x15mm button-head machine (hex drive) (6). Size exactly as printed in Traxxas's parts list; the file is built from that size only.
  • M3 × 15 mm, shank as a plain Ø3 cylinder, ISO 7380 button head Ø5.7 × 1.65 mm.
  • True size, no printing tolerance added.
  • Traxxas prints the thread and length; the head is drawn to the ISO 7380 button head standard (from the catalog's screw page) because the maker gives no head size.

Traxxas 2579 screws, M3 × 15 mm size chart

dimensionvalue
part numberTraxxas 2579
name (as printed)Screws, 3x15mm button-head machine (hex drive) (6)
size (as printed)3x15mm button-head machine (hex drive)
threadM3
length15 mm
head (drawn)ISO 7380 button head: Ø5.7 × 1.65 mm — head size not printed by Traxxas
used inTraxxas Slash 2WD (1/10 short course truck, 58034), Traxxas TRX-4 2021 Ford Bronco (1/10 crawler, 92076-4)

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

Traxxas (sheet hosted by JEGS)Slash 2WD Unassembled Kit (Model 58014-4) parts list, REV. 201103 1248, p. 2webPublisher's page; dimensions are facts

Free files

★ Free files 1 parts. Generated by Xem Studio from the standard; threads are plain cylinders at major diameter. CC BY 4.0. index.json

traxxas-2579-screws-3x15mm-button-head-machine-hex-drive-envelopeM3 × 15 mm, shank as a plain Ø3 cylinder, ISO 7380 button head Ø5.7 × 1.65 mmSTEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=traxxas-2579-screws-3x15mm-button-head-machine-hex-drive

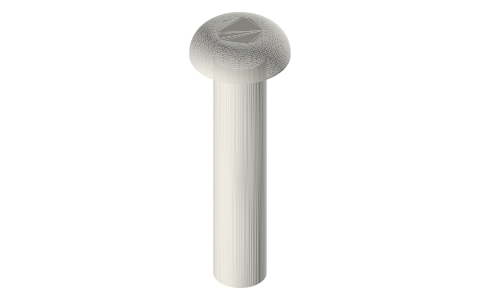

Traxxas 2579 screws, M3 × 15 mm, isometric render of a generated part
Render of traxxas-2579-screws-3x15mm-button-head-machine-hex-drive-envelope from the free STEP; not to scale.
