Traxxas 3742 screws, M3 × 30 mm

What size are Traxxas 3742 screws? · Modern device · basis: Maker's parts list (Traxxas)

Also called: Traxxas 3742, traxxas 3742, Traxxas part 3742, 3742 shoulder screws, steering bellcranks (3x30mm cap-head machine) / draglink shoulder screws (chrome), Traxxas 3742 size, Traxxas 3742 dimensions, Traxxas 3742 replacement, repuesto Traxxas 3742, Traxxas 3742 Ersatzteil

Exact dimensions. True size, with no printing tolerance added.

length
5.5 mm
width
5.5 mm
height
33.0 mm

Notes

  • Traxxas part 3742: Shoulder screws, steering bellcranks (3x30mm cap-head machine) (2)/ draglink shoulder screws (chrome) (2). Size exactly as printed in Traxxas's parts list; the file is built from that size only.
  • M3 × 30 mm, shank as a plain Ø3 cylinder, ISO 4762 cap head Ø5.5 × 3 mm.
  • True size, no printing tolerance added.
  • Traxxas prints the thread and length; the head is drawn to the ISO 4762 cap head standard (from the catalog's screw page) because the maker gives no head size.

Traxxas 3742 screws, M3 × 30 mm size chart

dimensionvalue
part numberTraxxas 3742
name (as printed)Shoulder screws, steering bellcranks (3x30mm cap-head machine) (2)/ draglink shoulder screws (chrome) (2)
size (as printed)3x30mm cap-head machine
threadM3
length30 mm
head (drawn)ISO 4762 cap head: Ø5.5 × 3 mm — head size not printed by Traxxas
used inTraxxas Rustler 2WD XL-5 (1/10 stadium truck, 37054), Traxxas Slash 2WD (1/10 short course truck, 58034)

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

Traxxas (sheet hosted by JEGS)Slash 2WD Unassembled Kit (Model 58014-4) parts list, REV. 201103 1248, p. 2webPublisher's page; dimensions are facts

Free files

★ Free files 1 parts. Generated by Xem Studio from the standard; threads are plain cylinders at major diameter. CC BY 4.0. index.json

traxxas-3742-shoulder-screws-steering-bellcranks-3x30mm-cap-head-machine-draglin-envelopeM3 × 30 mm, shank as a plain Ø3 cylinder, ISO 4762 cap head Ø5.5 × 3 mmSTEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=traxxas-3742-shoulder-screws-steering-bellcranks-3x30mm-cap-head-machine-draglin

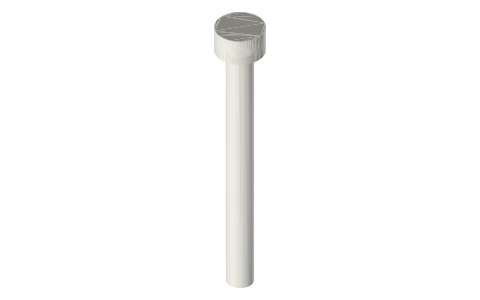

Traxxas 3742 screws, M3 × 30 mm, isometric render of a generated part
Render of traxxas-3742-shoulder-screws-steering-bellcranks-3x30mm-cap-head-machine-draglin-envelope from the free STEP; not to scale.
