Traxxas 3937 screws, M4 × 12 mm

What size are Traxxas 3937 screws? · Modern device · basis: Maker's parts list (Traxxas)

Also called: Traxxas 3937, traxxas 3937, Traxxas part 3937, 3937 screws, 4x12mm button-head machine (hex drive), Traxxas 3937 size, Traxxas 3937 dimensions, Traxxas 3937 replacement, repuesto Traxxas 3937, Traxxas 3937 Ersatzteil

Exact dimensions. True size, with no printing tolerance added.

length
7.61 mm
width
7.61 mm
height
14.21 mm

Notes

  • Traxxas part 3937: Screws, 4x12mm button-head machine (hex drive) (6). Size exactly as printed in Traxxas's parts list; the file is built from that size only.
  • M4 × 12 mm, shank as a plain Ø4 cylinder, ISO 7380 button head Ø7.6 × 2.2 mm.
  • True size, no printing tolerance added.
  • Traxxas prints the thread and length; the head is drawn to the ISO 7380 button head standard (from the catalog's screw page) because the maker gives no head size.

Traxxas 3937 screws, M4 × 12 mm size chart

dimensionvalue
part numberTraxxas 3937
name (as printed)Screws, 4x12mm button-head machine (hex drive) (6)
size (as printed)4x12mm button-head machine (hex drive)
threadM4
length12 mm
head (drawn)ISO 7380 button head: Ø7.6 × 2.2 mm — head size not printed by Traxxas
used inTraxxas Slash 2WD (1/10 short course truck, 58034)

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

Traxxas (sheet hosted by JEGS)Slash 2WD Unassembled Kit (Model 58014-4) parts list, REV. 201103 1248, p. 2webPublisher's page; dimensions are facts

Free files

★ Free files 1 parts. Generated by Xem Studio from the standard; threads are plain cylinders at major diameter. CC BY 4.0. index.json

traxxas-3937-screws-4x12mm-button-head-machine-hex-drive-envelopeM4 × 12 mm, shank as a plain Ø4 cylinder, ISO 7380 button head Ø7.6 × 2.2 mmSTEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=traxxas-3937-screws-4x12mm-button-head-machine-hex-drive

Traxxas 3937 screws, M4 × 12 mm, isometric render of a generated part

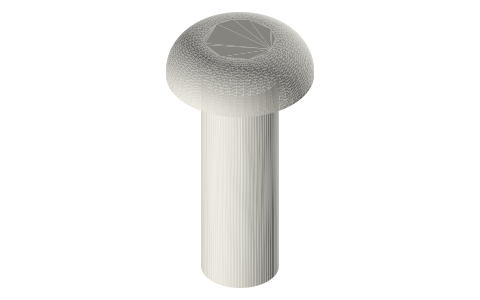

Render of traxxas-3937-screws-4x12mm-button-head-machine-hex-drive-envelope from the free STEP; not to scale.
