Traxxas 4628R screws, M3 × 5 mm

What size are Traxxas 4628R screws? · Modern device · basis: Maker's parts list (Traxxas)

Also called: Traxxas 4628R, traxxas 4628R, Traxxas part 4628R, 4628R differential output yokes, black / 3x5mm countersunk screws / screw pin, Traxxas 4628R size, Traxxas 4628R dimensions, Traxxas 4628R replacement, repuesto Traxxas 4628R, Traxxas 4628R Ersatzteil

Exact dimensions. True size, with no printing tolerance added.

length
6.03 mm
width
6.03 mm
height
6.72 mm

Notes

  • Traxxas part 4628R: Differential output yokes, black (2)/ 3x5mm countersunk screws (2)/ screw pin (2). Size exactly as printed in Traxxas's parts list; the file is built from that size only.
  • M3 × 5 mm, shank as a plain Ø3 cylinder, ISO 10642 flat (countersunk) head Ø6 × 1.7 mm.
  • True size, no printing tolerance added.
  • Traxxas prints the thread and length; the head is drawn to the ISO 10642 flat (countersunk) head standard (from the catalog's screw page) because the maker gives no head size.

Traxxas 4628R screws, M3 × 5 mm size chart

dimensionvalue
part numberTraxxas 4628R
name (as printed)Differential output yokes, black (2)/ 3x5mm countersunk screws (2)/ screw pin (2)
size (as printed)3x5mm countersunk screws
threadM3
length5 mm
head (drawn)ISO 10642 flat (countersunk) head: Ø6 × 1.7 mm — head size not printed by Traxxas
used inTraxxas Rustler 2WD XL-5 (1/10 stadium truck, 37054), Traxxas Slash 2WD (1/10 short course truck, 58034)

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

Traxxas (sheet hosted by JEGS)Slash 2WD Unassembled Kit (Model 58014-4) parts list, REV. 201103 1248, p. 1webPublisher's page; dimensions are facts

Free files

★ Free files 1 parts. Generated by Xem Studio from the standard; threads are plain cylinders at major diameter. CC BY 4.0. index.json

traxxas-4628r-differential-output-yokes-black-3x5mm-countersunk-screws-screw-pin-envelopeM3 × 5 mm, shank as a plain Ø3 cylinder, ISO 10642 flat (countersunk) head Ø6 × 1.7 mmSTEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=traxxas-4628r-differential-output-yokes-black-3x5mm-countersunk-screws-screw-pin

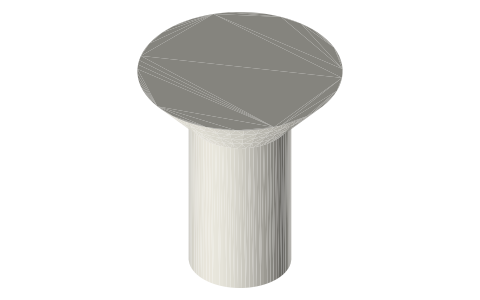

Traxxas 4628R screws, M3 × 5 mm, isometric render of a generated part
Render of traxxas-4628r-differential-output-yokes-black-3x5mm-countersunk-screws-screw-pin-envelope from the free STEP; not to scale.

Fits with

Traxxas Rustler 2WD (37054-8) parts list, isometric render of a generated part
Traxxas Rustler 2WD (37054-8) parts list445×311×178 mm★ 21 files
Traxxas Slash 2WD kit (58014-4) parts list, isometric render of a generated part
Traxxas Slash 2WD kit (58014-4) parts list578×296×214 mm★ 43 files
length
Traxxas Rustler 2WD XL-5 (1/10 stadium truck, 37054)445×311×178 mm★ 1 file
length
Traxxas Slash 2WD (1/10 short course truck, 58034)578×296×214 mm★ 1 file
Socket head cap screws, M2–M8 (ISO 4762 / DIN 912), isometric render of a generated part
Socket head cap screws, M2–M8 (ISO 4762 / DIN 912)7 sizes★ 47 files
Button head socket screws, M2–M8 (ISO 7380), isometric render of a generated part
Button head socket screws, M2–M8 (ISO 7380)7 sizes★ 35 files
Countersunk socket screws, M2–M8 (ISO 10642 / DIN 7991), isometric render of a generated part
Countersunk socket screws, M2–M8 (ISO 10642 / DIN 7991)7 sizes★ 35 files

Questions

What size are Traxxas 4628R screws?

M3 × 5 mm
