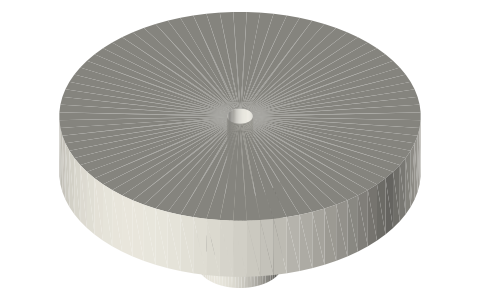

Crankcase flywheels: Ø44 × 12 disc and Ø42 pocket flywheel on a Ø3 shaft, inside a 2 in tri-clamp fitting
Where does the flywheel go on a Stirling engine with no shaft out of its crankcase? · Hardware · basis: Design values: Ø44 so the disc turns inside the 2 in bore (Ø47.5); Ø42 so the pocket flywheel turns in the bearing plate's Ø44 pocket inside the gasket lip (Ø45.3); inertia and the cycle's energy swing from the Schmidt estimate
Long Earth Society build part. The flywheels inside my sealed generator. The engines
Exact dimensions. Every file is drawn at true size with no printing tolerance. The holes and pins that meet another part are listed below under Mating features, with the fit each joint needs; open those by your printer's or process's clearance before making the part. Mating features
- sizes
- 2 in table
Notes
- Discs on the crankshaft between the crank and the bearing plates' spigots (one on +X, one on −X beside the crank gear), and a pocket flywheel on each shaft end in the bearing plate's pocket, 0.5 mm from the end cap. An M3 grub holds each.
- Why: nothing turns outside the vessel, so these, the crank gear and the generator's can (which turns 2.8 times faster, so counts 7.8 times its own inertia) are the whole flywheel. One cycle swings about 0.16 J against a steady load: a speed swing of 12–27 % at 900 rpm and 7–15 % at 1200 rpm for a disc density of 7.8 to 2.7 g/cm³ (the motor's turning part taken as 18 g at r 12.5).
Sizes
| file | size | bore | per engine |
|---|---|---|---|
| crank-flywheel-44x12-b3 | Ø44 × 12 | Ø3, radial M3 grub | 2 |
| pocket-flywheel-42x8-b3 | Ø42 × 8 + Ø10 hub | Ø3, M3 grub | 2 |
Mating features
Drawn at the exact size. Open press, slide, run and socket features by your process's clearance; leave designed gaps and clamp fits as drawn.
| feature | exact | mates with | fit | files |
|---|---|---|---|---|
| bore | Ø3 | Ø3 crankshaft (M3 grub) | slide | all |
| grub hole | Ø2.5 (M3 tapped), radial from the rim | set-m3x10 | designed | crank-flywheel-* |
| grub hole | Ø2.5 (M3 tapped) in the hub | set-m3x3 | designed | pocket-flywheel-* |
| rim | Ø44 / Ø42 | 2 in bore Ø47.5 / plate pocket Ø44 and gasket lip Ø45.3 (no contact) | designed | all |
Where the files are
Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.
| Ohio University (I. Urieli) | Stirling cycle machine analysis: the Schmidt (isothermal) analysis | web | university course pages verify |
| Long Earth Society | Engine builds | web, video | LES site |
Free files
★ Free files 2 parts. Generated by Xem Studio from the standard; threads are plain cylinders at major diameter. CC BY 4.0. index.json
| crank-flywheel-44x12-b3 | crankcase flywheel disc Ø44 × 12, Ø3 bore, radial M3 tapped hole (Ø2.5) from the rim to the bore at mid-thickness | STEP · STL |
| pocket-flywheel-42x8-b3 | pocket flywheel Ø42 × 8 on a Ø10 × 12.9 hub, Ø3 bore, M3 grub hole (Ø2.5) in the hub: turns in the bearing plate's Ø44 pocket | STEP · STL |
