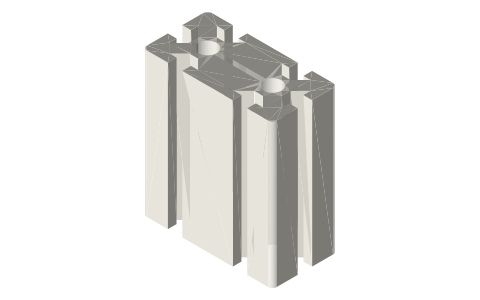

4590 aluminum extrusion, 10 mm slot (45-series)
What are the exact dimensions of 4590 aluminum extrusion? · Hardware · basis: Misumi 8-45 series, 10 mm slot, from Misumi's dimensioned drawing of this profile; every slot, lip, cavity, bore and outline number is the drawing's
Exact dimensions. Every file is drawn at true size with no printing tolerance. The holes and pins that meet another part are listed below under Mating features, with the fit each joint needs; open those by your printer's or process's clearance before making the part. Mating features
- width
- 90.0 mm
- height
- 45.0 mm
Notes
- 4590 aluminum extrusion, 10 mm slot (45-series): 45 × 90 mm, 6 slots on a 45 mm pitch (Misumi 8-45 series, 10 mm slot). Source: Misumi's dimensioned drawing of this profile. Files: STEP and STL at 100, 1000 mm with square ends, and a DXF of the exact cross-section (mm), the master to extrude to any length. The section is centred on the origin and extruded along +Z from z = 0.
- Slot: opening 10 mm, lip 6 mm thick at the opening, cavity 20 mm wide under the lips, 13 mm from the face to the cavity floor. Centre bore Ø12.5 mm per cell (the largest thread whose tap drill fits inside: M14, 12 mm).
- Cavity side walls: the drawing gives the cavity width (20 mm) and depths but not the web thickness, so the side walls run at 45° from the corner under each lip straight to the floor: the smallest cavity those numbers allow. The bar has at least the real metal there, and a part that fits this cavity fits the real one.
- The closed hollows between cells are not fully dimensioned on the drawing, so they are drawn filled: the outline, slots and bores are exact, the bar is heavier than the real one. The closed corner pockets are not fully dimensioned and are drawn filled.
- Outer corners R3 (stated).
- Wrapping it: to make a part that fits around the bar, subtract the 1000 mm file (or extrude the DXF) from your solid; the outline is the drawing's 45 × 90 mm with no allowance, so open the pocket by your process's socket fit (see Mating features).
- Attachments: the 45-series (10 mm slot) T-nuts, end caps, feet, brackets, gussets, plates and slot covers are cut from these same numbers; the fit check (tools/asm_extrusion_fit.py) placed each one on this profile with zero overlap.
Sizes
| feature | size | from |
|---|---|---|
| outline | 45 × 90 mm, R3 corners | drawing |
| slot pitch | 45 mm | drawing |
| slot opening | 10 mm | drawing |
| lip thickness at the opening | 6 mm | drawing |
| cavity width under the lips | 20 mm | drawing |
| face to cavity floor | 13 mm | drawing |
| cavity depth under the lip (at the cavity wall) | 7 mm | drawing |
| core between opposite floors | 19 mm | pitch − 2 × face-to-floor |
| diagonal web | not given (45° walls from the cavity corner) | assumed minimum cavity |
| centre bore | Ø12.5 mm × 2 | drawing |
| cross-section area | 1534 mm² | maker's page |
| mass | 4.14 kg/m | maker's page |
| Ix / Iy | 32.29 × 10⁴ / 124.7 × 10⁴ mm⁴ | maker's page |
| area of this model's section | 2890.8 mm² | computed from the DXF |
Mating features
Drawn at the exact size. Open press, slide, run and socket features by your process's clearance; leave designed gaps and clamp fits as drawn.
| feature | exact | mates with | fit | files |
|---|---|---|---|---|
| slot opening | 10 | T-nut tongue, slot-cover stem (45-series (10 mm slot)) | slide | all |
| slot cavity | 20 wide under the lips, face to floor 13, lip 6 | T-nut body (slide-in, drop-in) | slide | all |
| centre bore | Ø12.5 | M14 thread (tap drill 12); end-cap pin | designed | all |
| outline | 45 × 90, R3 | end-cap outline, foot socket, a pocket that wraps the bar | socket | all |
Where the files are
Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.
| Misumi | 45x90 Aluminum Extrusion - 8-45 Series, Base 45: product page with the cross-section drawing and section properties | web | Misumi site terms verify |
| Misumi | 4590 dimensioned cross-section drawing | image | Misumi site terms verify |
Free files
★ Free files 2 parts. Generated by Xem Studio from the standard; threads are plain cylinders at major diameter. CC BY 4.0. index.json
| 4590-100 | 4590 aluminum extrusion, 10 mm slot (45-series): 45 × 90 mm section, 100 mm long, square ends; DXF = the exact cross-section in mm | STEP · STL · DXF |
| 4590-1000 | 4590 aluminum extrusion, 10 mm slot (45-series): 45 × 90 mm section, 1000 mm long, square ends; DXF = the exact cross-section in mm | STEP · STL · DXF |
Plain text: sheet.txt · JSON: /api/geometry?object=4590-aluminum-extrusion
How it fits
Parts that fit it
Slide-in T-nuts for 20, 30, 40, 45 mm and 1 in,…tongue in the opening, body in the cavity (slide)
Drop-in T-nuts for 20, 30, 40, 45 mm and 1 in,…drops through the opening, turns 90° in the cavity
L corner brackets for 20, 30, 40, 45 mm and 1 in,…legs flat on two profile faces at 90°
Inside corner gussets for 20, 30, 40, 45 mm and 1…legs on two profile faces in the inside corner
Snap-in slot covers for 20, 30, 40, 45 mm and 1…stem in the slot opening, barb behind the lips
Joining plates, 2 × 3 holes, for 20, 30, 40, 45…holes over the slot centrelines on the profile pitch
End caps for every T-slot profile hereend-cap-45-2x1: pins in the centre bores (press)Alternatives
4545 aluminum extrusion, 10 mm slotsame 45-series (10 mm slot) slot, 45 × 45 mm
9090 aluminum extrusion, 10 mm slotsame 45-series (10 mm slot) slot, 90 × 90 mmAlso needed
Button head socket screws, M2–M8M8 screws through brackets into the T-nutsQuestions
What is the slot size of 4590 extrusion?
Opening 10 mm, lip 6 mm, cavity 20 mm wide under the lips and 13 mm deep from the face to the floor, per Misumi 8-45 series, 10 mm slot's drawing.
What T-nuts fit 4590 extrusion?
The 45-series (10 mm slot) nuts: slide-in (tnut-slide-45-m8) and drop-in versions, threaded M8 as tap-drill holes, cut to this slot's exact space.
Can I subtract this file to make a part that fits the extrusion exactly?
Yes: the outline is exactly 45 × 90 mm with R3 corners; extrude the DXF or subtract the 1000 mm STEP, then open the pocket by your fit.
How heavy is 4590 extrusion?
4.14 kg/m, 1534 mm² section, as Misumi states. This model's section is larger because closed hollows / cavity details the drawing leaves undimensioned are drawn filled; use the stated weight, not the model's volume.
What in this model is not taken straight from the drawing?
Cavity side walls: the drawing gives the cavity width (20 mm) and depths but not the web thickness, so the side walls run at 45° from the corner under each lip straight to the floor: the smallest cavity those numbers allow. The bar has at least the real metal there, and a part that fits this cavity fits the real one. The closed hollows between cells are not fully dimensioned on the drawing, so they are drawn filled: the outline, slots and bores are exact, the bar is heavier than the real one. The closed corner pockets are not fully dimensioned and are drawn filled.
