AS568 O-rings: all 349 standard sizes, -001 to -475

Name: AS568 O-rings: all 349 standard sizes, -001 to -475 dimension sheet
Creator: Xem Studio
License: https://creativecommons.org/licenses/by/4.0/

What size is an AS568-214 O-ring? · Standard part · basis: SAE AS568 standard O-ring sizes: nominal inside diameter and cross-section

Exact dimensions. True size, with no printing tolerance added.

sizes: 349 in table

Notes

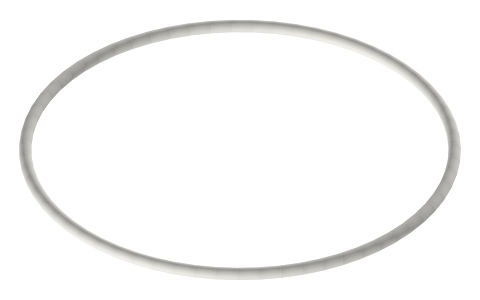

Drawn as a torus at the nominal ID and cross-section (the free, unstretched ring). Series: -0xx 0.070 in, -1xx 0.103, -2xx 0.139, -3xx 0.210, -4xx 0.275 in cross-section (the smallest -001 to -003 are thinner).

Sizes

dash	id_in	cs_in	id_mm	cs_mm	od_mm
-001	0.029	0.040	0.74	1.02	2.77
-002	0.042	0.050	1.07	1.27	3.61
-003	0.056	0.060	1.42	1.52	4.47
-004	0.070	0.070	1.78	1.78	5.33
-005	0.101	0.070	2.57	1.78	6.12
-006	0.114	0.070	2.9	1.78	6.45
-007	0.145	0.070	3.68	1.78	7.24
-008	0.176	0.070	4.47	1.78	8.03
-009	0.208	0.070	5.28	1.78	8.84
-010	0.239	0.070	6.07	1.78	9.63
-011	0.301	0.070	7.65	1.78	11.2
-012	0.364	0.070	9.25	1.78	12.8
-013	0.426	0.070	10.82	1.78	14.38
-014	0.489	0.070	12.42	1.78	15.98
-015	0.551	0.070	14.0	1.78	17.55
-016	0.614	0.070	15.6	1.78	19.15
-017	0.676	0.070	17.17	1.78	20.73
-018	0.739	0.070	18.77	1.78	22.33
-019	0.801	0.070	20.35	1.78	23.9
-020	0.864	0.070	21.95	1.78	25.5
-021	0.926	0.070	23.52	1.78	27.08
-022	0.989	0.070	25.12	1.78	28.68
-023	1.051	0.070	26.7	1.78	30.25
-024	1.114	0.070	28.3	1.78	31.85
-025	1.176	0.070	29.87	1.78	33.43
-026	1.239	0.070	31.47	1.78	35.03
-027	1.301	0.070	33.05	1.78	36.6
-028	1.364	0.070	34.65	1.78	38.2
-029	1.489	0.070	37.82	1.78	41.38
-030	1.614	0.070	41.0	1.78	44.55
-031	1.739	0.070	44.17	1.78	47.73
-032	1.864	0.070	47.35	1.78	50.9
-033	1.989	0.070	50.52	1.78	54.08
-034	2.114	0.070	53.7	1.78	57.25
-035	2.239	0.070	56.87	1.78	60.43
-036	2.364	0.070	60.05	1.78	63.6
-037	2.489	0.070	63.22	1.78	66.78
-038	2.614	0.070	66.4	1.78	69.95
-039	2.739	0.070	69.57	1.78	73.13
-040	2.864	0.070	72.75	1.78	76.3
-041	2.989	0.070	75.92	1.78	79.48
-042	3.239	0.070	82.27	1.78	85.83
-043	3.489	0.070	88.62	1.78	92.18
-044	3.739	0.070	94.97	1.78	98.53
-045	3.989	0.070	101.32	1.78	104.88
-046	4.239	0.070	107.67	1.78	111.23
-047	4.489	0.070	114.02	1.78	117.58
-048	4.739	0.070	120.37	1.78	123.93
-049	4.989	0.070	126.72	1.78	130.28
-050	5.239	0.070	133.07	1.78	136.63
-102	0.049	0.103	1.24	2.62	6.48
-103	0.081	0.103	2.06	2.62	7.29
-104	0.112	0.103	2.84	2.62	8.08
-105	0.143	0.103	3.63	2.62	8.86
-106	0.174	0.103	4.42	2.62	9.65
-107	0.206	0.103	5.23	2.62	10.46
-108	0.237	0.103	6.02	2.62	11.25
-109	0.299	0.103	7.59	2.62	12.83
-110	0.362	0.103	9.19	2.62	14.43
-111	0.424	0.103	10.77	2.62	16.0
-112	0.487	0.103	12.37	2.62	17.6
-113	0.549	0.103	13.94	2.62	19.18
-114	0.612	0.103	15.54	2.62	20.78
-115	0.674	0.103	17.12	2.62	22.35
-116	0.737	0.103	18.72	2.62	23.95
-117	0.799	0.103	20.29	2.62	25.53
-118	0.862	0.103	21.89	2.62	27.13
-119	0.924	0.103	23.47	2.62	28.7
-120	0.987	0.103	25.07	2.62	30.3
-121	1.049	0.103	26.64	2.62	31.88
-122	1.112	0.103	28.24	2.62	33.48
-123	1.174	0.103	29.82	2.62	35.05
-124	1.237	0.103	31.42	2.62	36.65
-125	1.299	0.103	32.99	2.62	38.23
-126	1.362	0.103	34.59	2.62	39.83
-127	1.424	0.103	36.17	2.62	41.4
-128	1.487	0.103	37.77	2.62	43.0
-129	1.549	0.103	39.34	2.62	44.58
-130	1.612	0.103	40.94	2.62	46.18
-131	1.674	0.103	42.52	2.62	47.75
-132	1.737	0.103	44.12	2.62	49.35
-133	1.799	0.103	45.69	2.62	50.93
-134	1.862	0.103	47.29	2.62	52.53
-135	1.925	0.103	48.89	2.62	54.13
-136	1.987	0.103	50.47	2.62	55.7
-137	2.050	0.103	52.07	2.62	57.3
-138	2.112	0.103	53.64	2.62	58.88
-139	2.175	0.103	55.24	2.62	60.48
-140	2.237	0.103	56.82	2.62	62.05
-141	2.300	0.103	58.42	2.62	63.65
-142	2.362	0.103	59.99	2.62	65.23
-143	2.425	0.103	61.59	2.62	66.83
-144	2.487	0.103	63.17	2.62	68.4
-145	2.550	0.103	64.77	2.62	70.0
-146	2.612	0.103	66.34	2.62	71.58
-147	2.675	0.103	67.94	2.62	73.18
-148	2.737	0.103	69.52	2.62	74.75
-149	2.800	0.103	71.12	2.62	76.35
-150	2.862	0.103	72.69	2.62	77.93
-151	2.987	0.103	75.87	2.62	81.1
-152	3.237	0.103	82.22	2.62	87.45
-153	3.487	0.103	88.57	2.62	93.8
-154	3.737	0.103	94.92	2.62	100.15
-155	3.987	0.103	101.27	2.62	106.5
-156	4.237	0.103	107.62	2.62	112.85
-157	4.487	0.103	113.97	2.62	119.2
-158	4.737	0.103	120.32	2.62	125.55
-159	4.987	0.103	126.67	2.62	131.9
-160	5.237	0.103	133.02	2.62	138.25
-161	5.487	0.103	139.37	2.62	144.6
-162	5.737	0.103	145.72	2.62	150.95
-163	5.987	0.103	152.07	2.62	157.3
-164	6.237	0.103	158.42	2.62	163.65
-165	6.487	0.103	164.77	2.62	170.0
-166	6.737	0.103	171.12	2.62	176.35
-167	6.987	0.103	177.47	2.62	182.7
-168	7.237	0.103	183.82	2.62	189.05
-169	7.487	0.103	190.17	2.62	195.4
-170	7.737	0.103	196.52	2.62	201.75
-171	7.987	0.103	202.87	2.62	208.1
-172	8.237	0.103	209.22	2.62	214.45
-173	8.487	0.103	215.57	2.62	220.8
-174	8.737	0.103	221.92	2.62	227.15
-175	8.987	0.103	228.27	2.62	233.5
-176	9.237	0.103	234.62	2.62	239.85
-177	9.487	0.103	240.97	2.62	246.2
-178	9.737	0.103	247.32	2.62	252.55
-201	0.171	0.139	4.34	3.53	11.4
-202	0.234	0.139	5.94	3.53	13.0
-203	0.296	0.139	7.52	3.53	14.58
-204	0.359	0.139	9.12	3.53	16.18
-205	0.421	0.139	10.69	3.53	17.75
-206	0.484	0.139	12.29	3.53	19.35
-207	0.546	0.139	13.87	3.53	20.93
-208	0.609	0.139	15.47	3.53	22.53
-209	0.671	0.139	17.04	3.53	24.1
-210	0.734	0.139	18.64	3.53	25.7
-211	0.796	0.139	20.22	3.53	27.28
-212	0.859	0.139	21.82	3.53	28.88
-213	0.921	0.139	23.39	3.53	30.45
-214	0.984	0.139	24.99	3.53	32.05
-215	1.046	0.139	26.57	3.53	33.63
-216	1.109	0.139	28.17	3.53	35.23
-217	1.171	0.139	29.74	3.53	36.8
-218	1.234	0.139	31.34	3.53	38.4
-219	1.296	0.139	32.92	3.53	39.98
-220	1.359	0.139	34.52	3.53	41.58
-221	1.421	0.139	36.09	3.53	43.15
-222	1.484	0.139	37.69	3.53	44.75
-223	1.609	0.139	40.87	3.53	47.93
-224	1.734	0.139	44.04	3.53	51.1
-225	1.859	0.139	47.22	3.53	54.28
-226	1.984	0.139	50.39	3.53	57.45
-227	2.109	0.139	53.57	3.53	60.63
-228	2.234	0.139	56.74	3.53	63.8
-229	2.359	0.139	59.92	3.53	66.98
-230	2.484	0.139	63.09	3.53	70.15
-231	2.609	0.139	66.27	3.53	73.33
-232	2.734	0.139	69.44	3.53	76.5
-233	2.859	0.139	72.62	3.53	79.68
-234	2.984	0.139	75.79	3.53	82.85
-235	3.109	0.139	78.97	3.53	86.03
-236	3.234	0.139	82.14	3.53	89.2
-237	3.359	0.139	85.32	3.53	92.38
-238	3.484	0.139	88.49	3.53	95.55
-239	3.609	0.139	91.67	3.53	98.73
-240	3.734	0.139	94.84	3.53	101.9
-241	3.859	0.139	98.02	3.53	105.08
-242	3.984	0.139	101.19	3.53	108.25
-243	4.109	0.139	104.37	3.53	111.43
-244	4.234	0.139	107.54	3.53	114.6
-245	4.359	0.139	110.72	3.53	117.78
-246	4.484	0.139	113.89	3.53	120.95
-247	4.609	0.139	117.07	3.53	124.13
-248	4.734	0.139	120.24	3.53	127.3
-249	4.859	0.139	123.42	3.53	130.48
-250	4.984	0.139	126.59	3.53	133.65
-251	5.109	0.139	129.77	3.53	136.83
-252	5.234	0.139	132.94	3.53	140.0
-253	5.359	0.139	136.12	3.53	143.18
-254	5.484	0.139	139.29	3.53	146.35
-255	5.609	0.139	142.47	3.53	149.53
-256	5.734	0.139	145.64	3.53	152.7
-257	5.859	0.139	148.82	3.53	155.88
-258	5.984	0.139	151.99	3.53	159.05
-259	6.234	0.139	158.34	3.53	165.4
-260	6.484	0.139	164.69	3.53	171.75
-261	6.734	0.139	171.04	3.53	178.1
-262	6.984	0.139	177.39	3.53	184.45
-263	7.234	0.139	183.74	3.53	190.8
-264	7.484	0.139	190.09	3.53	197.15
-265	7.734	0.139	196.44	3.53	203.5
-266	7.984	0.139	202.79	3.53	209.85
-267	8.234	0.139	209.14	3.53	216.2
-268	8.484	0.139	215.49	3.53	222.55
-269	8.734	0.139	221.84	3.53	228.9
-270	8.984	0.139	228.19	3.53	235.25
-271	9.234	0.139	234.54	3.53	241.6
-272	9.484	0.139	240.89	3.53	247.95
-273	9.734	0.139	247.24	3.53	254.3
-274	9.984	0.139	253.59	3.53	260.65
-275	10.484	0.139	266.29	3.53	273.35
-276	10.984	0.139	278.99	3.53	286.05
-277	11.484	0.139	291.69	3.53	298.75
-278	11.984	0.139	304.39	3.53	311.45
-279	12.984	0.139	329.79	3.53	336.85
-280	13.984	0.139	355.19	3.53	362.25
-281	14.984	0.139	380.59	3.53	387.65
-282	15.955	0.139	405.26	3.53	412.32
-283	16.955	0.139	430.66	3.53	437.72
-284	17.955	0.139	456.06	3.53	463.12
-309	0.412	0.210	10.46	5.33	21.13
-310	0.475	0.210	12.06	5.33	22.73
-311	0.537	0.210	13.64	5.33	24.31
-312	0.600	0.210	15.24	5.33	25.91
-313	0.662	0.210	16.81	5.33	27.48
-314	0.725	0.210	18.41	5.33	29.08
-315	0.787	0.210	19.99	5.33	30.66
-316	0.850	0.210	21.59	5.33	32.26
-317	0.912	0.210	23.16	5.33	33.83
-318	0.975	0.210	24.76	5.33	35.43
-319	1.037	0.210	26.34	5.33	37.01
-320	1.100	0.210	27.94	5.33	38.61
-321	1.162	0.210	29.51	5.33	40.18
-322	1.225	0.210	31.12	5.33	41.78
-323	1.287	0.210	32.69	5.33	43.36
-324	1.350	0.210	34.29	5.33	44.96
-325	1.475	0.210	37.47	5.33	48.13
-326	1.600	0.210	40.64	5.33	51.31
-327	1.725	0.210	43.81	5.33	54.48
-328	1.850	0.210	46.99	5.33	57.66
-329	1.975	0.210	50.16	5.33	60.83
-330	2.100	0.210	53.34	5.33	64.01
-331	2.225	0.210	56.52	5.33	67.18
-332	2.350	0.210	59.69	5.33	70.36
-333	2.475	0.210	62.87	5.33	73.53
-334	2.600	0.210	66.04	5.33	76.71
-335	2.725	0.210	69.22	5.33	79.88
-336	2.850	0.210	72.39	5.33	83.06
-337	2.975	0.210	75.56	5.33	86.23
-338	3.100	0.210	78.74	5.33	89.41
-339	3.225	0.210	81.91	5.33	92.58
-340	3.350	0.210	85.09	5.33	95.76
-341	3.475	0.210	88.27	5.33	98.93
-342	3.600	0.210	91.44	5.33	102.11
-343	3.725	0.210	94.61	5.33	105.28
-344	3.850	0.210	97.79	5.33	108.46
-345	3.975	0.210	100.97	5.33	111.63
-346	4.100	0.210	104.14	5.33	114.81
-347	4.225	0.210	107.31	5.33	117.98
-348	4.350	0.210	110.49	5.33	121.16
-349	4.475	0.210	113.66	5.33	124.33
-350	4.600	0.210	116.84	5.33	127.51
-351	4.725	0.210	120.01	5.33	130.68
-352	4.850	0.210	123.19	5.33	133.86
-353	4.975	0.210	126.36	5.33	137.03
-354	5.100	0.210	129.54	5.33	140.21
-355	5.225	0.210	132.71	5.33	143.38
-356	5.350	0.210	135.89	5.33	146.56
-357	5.475	0.210	139.06	5.33	149.73
-358	5.600	0.210	142.24	5.33	152.91
-359	5.725	0.210	145.41	5.33	156.08
-360	5.850	0.210	148.59	5.33	159.26
-361	5.975	0.210	151.76	5.33	162.43
-362	6.225	0.210	158.11	5.33	168.78
-363	6.475	0.210	164.46	5.33	175.13
-364	6.725	0.210	170.81	5.33	181.48
-365	6.975	0.210	177.16	5.33	187.83
-366	7.225	0.210	183.51	5.33	194.18
-367	7.475	0.210	189.86	5.33	200.53
-368	7.725	0.210	196.21	5.33	206.88
-369	7.975	0.210	202.56	5.33	213.23
-370	8.225	0.210	208.91	5.33	219.58
-371	8.475	0.210	215.26	5.33	225.93
-372	8.725	0.210	221.61	5.33	232.28
-373	8.975	0.210	227.96	5.33	238.63
-374	9.225	0.210	234.31	5.33	244.98
-375	9.475	0.210	240.66	5.33	251.33
-376	9.725	0.210	247.01	5.33	257.68
-377	9.975	0.210	253.36	5.33	264.03
-378	10.475	0.210	266.06	5.33	276.73
-379	10.975	0.210	278.76	5.33	289.43
-380	11.475	0.210	291.46	5.33	302.13
-381	11.975	0.210	304.16	5.33	314.83
-382	12.975	0.210	329.56	5.33	340.23
-383	13.975	0.210	354.96	5.33	365.63
-384	14.975	0.210	380.36	5.33	391.03
-385	15.955	0.210	405.26	5.33	415.93
-386	16.955	0.210	430.66	5.33	441.32
-387	17.955	0.210	456.06	5.33	466.72
-388	18.955	0.210	481.46	5.33	492.12
-389	19.955	0.210	506.86	5.33	517.52
-390	20.955	0.210	532.26	5.33	542.92
-391	21.955	0.210	557.66	5.33	568.32
-392	22.940	0.210	582.68	5.33	593.34
-393	23.940	0.210	608.08	5.33	618.74
-394	24.940	0.210	633.48	5.33	644.14
-395	25.940	0.210	658.88	5.33	669.54
-425	4.475	0.275	113.66	6.99	127.63
-426	4.600	0.275	116.84	6.99	130.81
-427	4.725	0.275	120.01	6.99	133.98
-428	4.850	0.275	123.19	6.99	137.16
-429	4.975	0.275	126.36	6.99	140.33
-430	5.100	0.275	129.54	6.99	143.51
-431	5.225	0.275	132.71	6.99	146.68
-432	5.350	0.275	135.89	6.99	149.86
-433	5.475	0.275	139.06	6.99	153.03
-434	5.600	0.275	142.24	6.99	156.21
-435	5.725	0.275	145.41	6.99	159.38
-436	5.850	0.275	148.59	6.99	162.56
-437	5.975	0.275	151.76	6.99	165.73
-438	6.225	0.275	158.11	6.99	172.08
-439	6.475	0.275	164.46	6.99	178.43
-440	6.725	0.275	170.81	6.99	184.78
-441	6.975	0.275	177.16	6.99	191.13
-442	7.225	0.275	183.51	6.99	197.48
-443	7.475	0.275	189.86	6.99	203.83
-444	7.725	0.275	196.21	6.99	210.18
-445	7.975	0.275	202.56	6.99	216.53
-446	8.475	0.275	215.26	6.99	229.23
-447	8.975	0.275	227.96	6.99	241.93
-448	9.475	0.275	240.66	6.99	254.63
-449	9.975	0.275	253.36	6.99	267.33
-450	10.475	0.275	266.06	6.99	280.04
-451	10.975	0.275	278.76	6.99	292.74
-452	11.475	0.275	291.46	6.99	305.44
-453	11.975	0.275	304.16	6.99	318.13
-454	12.475	0.275	316.86	6.99	330.83
-455	12.975	0.275	329.56	6.99	343.54
-456	13.475	0.275	342.26	6.99	356.24
-457	13.975	0.275	354.96	6.99	368.94
-458	14.475	0.275	367.66	6.99	381.63
-459	14.975	0.275	380.36	6.99	394.33
-460	15.475	0.275	393.06	6.99	407.03
-461	15.955	0.275	405.26	6.99	419.23
-462	16.455	0.275	417.96	6.99	431.93
-463	16.955	0.275	430.66	6.99	444.63
-464	17.455	0.275	443.36	6.99	457.33
-465	17.955	0.275	456.06	6.99	470.03
-466	18.455	0.275	468.76	6.99	482.73
-467	18.955	0.275	481.46	6.99	495.43
-468	19.455	0.275	494.16	6.99	508.13
-469	19.955	0.275	506.86	6.99	520.83
-470	20.955	0.275	532.26	6.99	546.23
-471	21.955	0.275	557.66	6.99	571.63
-472	22.940	0.275	582.68	6.99	596.65
-473	23.940	0.275	608.08	6.99	622.05
-474	24.940	0.275	633.48	6.99	647.45
-475	25.940	0.275	658.88	6.99	672.85

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

SAE	AS568 Aerospace size standard for O-rings	standard	SAE; dimensions are facts verify
Greene Tweed	AS568 standard O-ring sizing (ID and cross-section per dash number)	PDF	Greene Tweed; dimensions are facts

Free files

★ Free files 349 parts. Generated by Xem Studio from the standard; threads are plain cylinders at major diameter. CC BY 4.0. index.json

o-ring-as568-001	AS568-001: ID 0.029 in × CS 0.040 in (Ø0.74 × 1.02 mm, OD 2.77 mm)	STEP · STL
o-ring-as568-002	AS568-002: ID 0.042 in × CS 0.050 in (Ø1.07 × 1.27 mm, OD 3.61 mm)	STEP · STL
o-ring-as568-003	AS568-003: ID 0.056 in × CS 0.060 in (Ø1.42 × 1.52 mm, OD 4.47 mm)	STEP · STL
o-ring-as568-004	AS568-004: ID 0.070 in × CS 0.070 in (Ø1.78 × 1.78 mm, OD 5.33 mm)	STEP · STL
o-ring-as568-005	AS568-005: ID 0.101 in × CS 0.070 in (Ø2.57 × 1.78 mm, OD 6.12 mm)	STEP · STL
o-ring-as568-006	AS568-006: ID 0.114 in × CS 0.070 in (Ø2.90 × 1.78 mm, OD 6.45 mm)	STEP · STL
o-ring-as568-007	AS568-007: ID 0.145 in × CS 0.070 in (Ø3.68 × 1.78 mm, OD 7.24 mm)	STEP · STL
o-ring-as568-008	AS568-008: ID 0.176 in × CS 0.070 in (Ø4.47 × 1.78 mm, OD 8.03 mm)	STEP · STL
o-ring-as568-009	AS568-009: ID 0.208 in × CS 0.070 in (Ø5.28 × 1.78 mm, OD 8.84 mm)	STEP · STL
o-ring-as568-010	AS568-010: ID 0.239 in × CS 0.070 in (Ø6.07 × 1.78 mm, OD 9.63 mm)	STEP · STL
o-ring-as568-011	AS568-011: ID 0.301 in × CS 0.070 in (Ø7.65 × 1.78 mm, OD 11.20 mm)	STEP · STL
o-ring-as568-012	AS568-012: ID 0.364 in × CS 0.070 in (Ø9.25 × 1.78 mm, OD 12.80 mm)	STEP · STL
o-ring-as568-013	AS568-013: ID 0.426 in × CS 0.070 in (Ø10.82 × 1.78 mm, OD 14.38 mm)	STEP · STL
o-ring-as568-014	AS568-014: ID 0.489 in × CS 0.070 in (Ø12.42 × 1.78 mm, OD 15.98 mm)	STEP · STL
o-ring-as568-015	AS568-015: ID 0.551 in × CS 0.070 in (Ø14.00 × 1.78 mm, OD 17.55 mm)	STEP · STL
o-ring-as568-016	AS568-016: ID 0.614 in × CS 0.070 in (Ø15.60 × 1.78 mm, OD 19.15 mm)	STEP · STL
o-ring-as568-017	AS568-017: ID 0.676 in × CS 0.070 in (Ø17.17 × 1.78 mm, OD 20.73 mm)	STEP · STL
o-ring-as568-018	AS568-018: ID 0.739 in × CS 0.070 in (Ø18.77 × 1.78 mm, OD 22.33 mm)	STEP · STL
o-ring-as568-019	AS568-019: ID 0.801 in × CS 0.070 in (Ø20.35 × 1.78 mm, OD 23.90 mm)	STEP · STL
o-ring-as568-020	AS568-020: ID 0.864 in × CS 0.070 in (Ø21.95 × 1.78 mm, OD 25.50 mm)	STEP · STL
o-ring-as568-021	AS568-021: ID 0.926 in × CS 0.070 in (Ø23.52 × 1.78 mm, OD 27.08 mm)	STEP · STL
o-ring-as568-022	AS568-022: ID 0.989 in × CS 0.070 in (Ø25.12 × 1.78 mm, OD 28.68 mm)	STEP · STL
o-ring-as568-023	AS568-023: ID 1.051 in × CS 0.070 in (Ø26.70 × 1.78 mm, OD 30.25 mm)	STEP · STL
o-ring-as568-024	AS568-024: ID 1.114 in × CS 0.070 in (Ø28.30 × 1.78 mm, OD 31.85 mm)	STEP · STL
o-ring-as568-025	AS568-025: ID 1.176 in × CS 0.070 in (Ø29.87 × 1.78 mm, OD 33.43 mm)	STEP · STL
o-ring-as568-026	AS568-026: ID 1.239 in × CS 0.070 in (Ø31.47 × 1.78 mm, OD 35.03 mm)	STEP · STL
o-ring-as568-027	AS568-027: ID 1.301 in × CS 0.070 in (Ø33.05 × 1.78 mm, OD 36.60 mm)	STEP · STL
o-ring-as568-028	AS568-028: ID 1.364 in × CS 0.070 in (Ø34.65 × 1.78 mm, OD 38.20 mm)	STEP · STL
o-ring-as568-029	AS568-029: ID 1.489 in × CS 0.070 in (Ø37.82 × 1.78 mm, OD 41.38 mm)	STEP · STL
o-ring-as568-030	AS568-030: ID 1.614 in × CS 0.070 in (Ø41.00 × 1.78 mm, OD 44.55 mm)	STEP · STL
o-ring-as568-031	AS568-031: ID 1.739 in × CS 0.070 in (Ø44.17 × 1.78 mm, OD 47.73 mm)	STEP · STL
o-ring-as568-032	AS568-032: ID 1.864 in × CS 0.070 in (Ø47.35 × 1.78 mm, OD 50.90 mm)	STEP · STL
o-ring-as568-033	AS568-033: ID 1.989 in × CS 0.070 in (Ø50.52 × 1.78 mm, OD 54.08 mm)	STEP · STL
o-ring-as568-034	AS568-034: ID 2.114 in × CS 0.070 in (Ø53.70 × 1.78 mm, OD 57.25 mm)	STEP · STL
o-ring-as568-035	AS568-035: ID 2.239 in × CS 0.070 in (Ø56.87 × 1.78 mm, OD 60.43 mm)	STEP · STL
o-ring-as568-036	AS568-036: ID 2.364 in × CS 0.070 in (Ø60.05 × 1.78 mm, OD 63.60 mm)	STEP · STL
o-ring-as568-037	AS568-037: ID 2.489 in × CS 0.070 in (Ø63.22 × 1.78 mm, OD 66.78 mm)	STEP · STL
o-ring-as568-038	AS568-038: ID 2.614 in × CS 0.070 in (Ø66.40 × 1.78 mm, OD 69.95 mm)	STEP · STL
o-ring-as568-039	AS568-039: ID 2.739 in × CS 0.070 in (Ø69.57 × 1.78 mm, OD 73.13 mm)	STEP · STL
o-ring-as568-040	AS568-040: ID 2.864 in × CS 0.070 in (Ø72.75 × 1.78 mm, OD 76.30 mm)	STEP · STL
o-ring-as568-041	AS568-041: ID 2.989 in × CS 0.070 in (Ø75.92 × 1.78 mm, OD 79.48 mm)	STEP · STL
o-ring-as568-042	AS568-042: ID 3.239 in × CS 0.070 in (Ø82.27 × 1.78 mm, OD 85.83 mm)	STEP · STL
o-ring-as568-043	AS568-043: ID 3.489 in × CS 0.070 in (Ø88.62 × 1.78 mm, OD 92.18 mm)	STEP · STL
o-ring-as568-044	AS568-044: ID 3.739 in × CS 0.070 in (Ø94.97 × 1.78 mm, OD 98.53 mm)	STEP · STL
o-ring-as568-045	AS568-045: ID 3.989 in × CS 0.070 in (Ø101.32 × 1.78 mm, OD 104.88 mm)	STEP · STL
o-ring-as568-046	AS568-046: ID 4.239 in × CS 0.070 in (Ø107.67 × 1.78 mm, OD 111.23 mm)	STEP · STL
o-ring-as568-047	AS568-047: ID 4.489 in × CS 0.070 in (Ø114.02 × 1.78 mm, OD 117.58 mm)	STEP · STL
o-ring-as568-048	AS568-048: ID 4.739 in × CS 0.070 in (Ø120.37 × 1.78 mm, OD 123.93 mm)	STEP · STL
o-ring-as568-049	AS568-049: ID 4.989 in × CS 0.070 in (Ø126.72 × 1.78 mm, OD 130.28 mm)	STEP · STL
o-ring-as568-050	AS568-050: ID 5.239 in × CS 0.070 in (Ø133.07 × 1.78 mm, OD 136.63 mm)	STEP · STL
o-ring-as568-102	AS568-102: ID 0.049 in × CS 0.103 in (Ø1.24 × 2.62 mm, OD 6.48 mm)	STEP · STL
o-ring-as568-103	AS568-103: ID 0.081 in × CS 0.103 in (Ø2.06 × 2.62 mm, OD 7.29 mm)	STEP · STL
o-ring-as568-104	AS568-104: ID 0.112 in × CS 0.103 in (Ø2.84 × 2.62 mm, OD 8.08 mm)	STEP · STL
o-ring-as568-105	AS568-105: ID 0.143 in × CS 0.103 in (Ø3.63 × 2.62 mm, OD 8.86 mm)	STEP · STL
o-ring-as568-106	AS568-106: ID 0.174 in × CS 0.103 in (Ø4.42 × 2.62 mm, OD 9.65 mm)	STEP · STL
o-ring-as568-107	AS568-107: ID 0.206 in × CS 0.103 in (Ø5.23 × 2.62 mm, OD 10.46 mm)	STEP · STL
o-ring-as568-108	AS568-108: ID 0.237 in × CS 0.103 in (Ø6.02 × 2.62 mm, OD 11.25 mm)	STEP · STL
o-ring-as568-109	AS568-109: ID 0.299 in × CS 0.103 in (Ø7.59 × 2.62 mm, OD 12.83 mm)	STEP · STL
o-ring-as568-110	AS568-110: ID 0.362 in × CS 0.103 in (Ø9.19 × 2.62 mm, OD 14.43 mm)	STEP · STL
o-ring-as568-111	AS568-111: ID 0.424 in × CS 0.103 in (Ø10.77 × 2.62 mm, OD 16.00 mm)	STEP · STL
o-ring-as568-112	AS568-112: ID 0.487 in × CS 0.103 in (Ø12.37 × 2.62 mm, OD 17.60 mm)	STEP · STL
o-ring-as568-113	AS568-113: ID 0.549 in × CS 0.103 in (Ø13.94 × 2.62 mm, OD 19.18 mm)	STEP · STL
o-ring-as568-114	AS568-114: ID 0.612 in × CS 0.103 in (Ø15.54 × 2.62 mm, OD 20.78 mm)	STEP · STL
o-ring-as568-115	AS568-115: ID 0.674 in × CS 0.103 in (Ø17.12 × 2.62 mm, OD 22.35 mm)	STEP · STL
o-ring-as568-116	AS568-116: ID 0.737 in × CS 0.103 in (Ø18.72 × 2.62 mm, OD 23.95 mm)	STEP · STL
o-ring-as568-117	AS568-117: ID 0.799 in × CS 0.103 in (Ø20.29 × 2.62 mm, OD 25.53 mm)	STEP · STL
o-ring-as568-118	AS568-118: ID 0.862 in × CS 0.103 in (Ø21.89 × 2.62 mm, OD 27.13 mm)	STEP · STL
o-ring-as568-119	AS568-119: ID 0.924 in × CS 0.103 in (Ø23.47 × 2.62 mm, OD 28.70 mm)	STEP · STL
o-ring-as568-120	AS568-120: ID 0.987 in × CS 0.103 in (Ø25.07 × 2.62 mm, OD 30.30 mm)	STEP · STL
o-ring-as568-121	AS568-121: ID 1.049 in × CS 0.103 in (Ø26.64 × 2.62 mm, OD 31.88 mm)	STEP · STL
o-ring-as568-122	AS568-122: ID 1.112 in × CS 0.103 in (Ø28.24 × 2.62 mm, OD 33.48 mm)	STEP · STL
o-ring-as568-123	AS568-123: ID 1.174 in × CS 0.103 in (Ø29.82 × 2.62 mm, OD 35.05 mm)	STEP · STL
o-ring-as568-124	AS568-124: ID 1.237 in × CS 0.103 in (Ø31.42 × 2.62 mm, OD 36.65 mm)	STEP · STL
o-ring-as568-125	AS568-125: ID 1.299 in × CS 0.103 in (Ø32.99 × 2.62 mm, OD 38.23 mm)	STEP · STL
o-ring-as568-126	AS568-126: ID 1.362 in × CS 0.103 in (Ø34.59 × 2.62 mm, OD 39.83 mm)	STEP · STL
o-ring-as568-127	AS568-127: ID 1.424 in × CS 0.103 in (Ø36.17 × 2.62 mm, OD 41.40 mm)	STEP · STL
o-ring-as568-128	AS568-128: ID 1.487 in × CS 0.103 in (Ø37.77 × 2.62 mm, OD 43.00 mm)	STEP · STL
o-ring-as568-129	AS568-129: ID 1.549 in × CS 0.103 in (Ø39.34 × 2.62 mm, OD 44.58 mm)	STEP · STL
o-ring-as568-130	AS568-130: ID 1.612 in × CS 0.103 in (Ø40.94 × 2.62 mm, OD 46.18 mm)	STEP · STL
o-ring-as568-131	AS568-131: ID 1.674 in × CS 0.103 in (Ø42.52 × 2.62 mm, OD 47.75 mm)	STEP · STL
o-ring-as568-132	AS568-132: ID 1.737 in × CS 0.103 in (Ø44.12 × 2.62 mm, OD 49.35 mm)	STEP · STL
o-ring-as568-133	AS568-133: ID 1.799 in × CS 0.103 in (Ø45.69 × 2.62 mm, OD 50.93 mm)	STEP · STL
o-ring-as568-134	AS568-134: ID 1.862 in × CS 0.103 in (Ø47.29 × 2.62 mm, OD 52.53 mm)	STEP · STL
o-ring-as568-135	AS568-135: ID 1.925 in × CS 0.103 in (Ø48.89 × 2.62 mm, OD 54.13 mm)	STEP · STL
o-ring-as568-136	AS568-136: ID 1.987 in × CS 0.103 in (Ø50.47 × 2.62 mm, OD 55.70 mm)	STEP · STL
o-ring-as568-137	AS568-137: ID 2.050 in × CS 0.103 in (Ø52.07 × 2.62 mm, OD 57.30 mm)	STEP · STL
o-ring-as568-138	AS568-138: ID 2.112 in × CS 0.103 in (Ø53.64 × 2.62 mm, OD 58.88 mm)	STEP · STL
o-ring-as568-139	AS568-139: ID 2.175 in × CS 0.103 in (Ø55.24 × 2.62 mm, OD 60.48 mm)	STEP · STL
o-ring-as568-140	AS568-140: ID 2.237 in × CS 0.103 in (Ø56.82 × 2.62 mm, OD 62.05 mm)	STEP · STL
o-ring-as568-141	AS568-141: ID 2.300 in × CS 0.103 in (Ø58.42 × 2.62 mm, OD 63.65 mm)	STEP · STL
o-ring-as568-142	AS568-142: ID 2.362 in × CS 0.103 in (Ø59.99 × 2.62 mm, OD 65.23 mm)	STEP · STL
o-ring-as568-143	AS568-143: ID 2.425 in × CS 0.103 in (Ø61.59 × 2.62 mm, OD 66.83 mm)	STEP · STL
o-ring-as568-144	AS568-144: ID 2.487 in × CS 0.103 in (Ø63.17 × 2.62 mm, OD 68.40 mm)	STEP · STL
o-ring-as568-145	AS568-145: ID 2.550 in × CS 0.103 in (Ø64.77 × 2.62 mm, OD 70.00 mm)	STEP · STL
o-ring-as568-146	AS568-146: ID 2.612 in × CS 0.103 in (Ø66.34 × 2.62 mm, OD 71.58 mm)	STEP · STL
o-ring-as568-147	AS568-147: ID 2.675 in × CS 0.103 in (Ø67.94 × 2.62 mm, OD 73.18 mm)	STEP · STL
o-ring-as568-148	AS568-148: ID 2.737 in × CS 0.103 in (Ø69.52 × 2.62 mm, OD 74.75 mm)	STEP · STL
o-ring-as568-149	AS568-149: ID 2.800 in × CS 0.103 in (Ø71.12 × 2.62 mm, OD 76.35 mm)	STEP · STL
o-ring-as568-150	AS568-150: ID 2.862 in × CS 0.103 in (Ø72.69 × 2.62 mm, OD 77.93 mm)	STEP · STL
o-ring-as568-151	AS568-151: ID 2.987 in × CS 0.103 in (Ø75.87 × 2.62 mm, OD 81.10 mm)	STEP · STL
o-ring-as568-152	AS568-152: ID 3.237 in × CS 0.103 in (Ø82.22 × 2.62 mm, OD 87.45 mm)	STEP · STL
o-ring-as568-153	AS568-153: ID 3.487 in × CS 0.103 in (Ø88.57 × 2.62 mm, OD 93.80 mm)	STEP · STL
o-ring-as568-154	AS568-154: ID 3.737 in × CS 0.103 in (Ø94.92 × 2.62 mm, OD 100.15 mm)	STEP · STL
o-ring-as568-155	AS568-155: ID 3.987 in × CS 0.103 in (Ø101.27 × 2.62 mm, OD 106.50 mm)	STEP · STL
o-ring-as568-156	AS568-156: ID 4.237 in × CS 0.103 in (Ø107.62 × 2.62 mm, OD 112.85 mm)	STEP · STL
o-ring-as568-157	AS568-157: ID 4.487 in × CS 0.103 in (Ø113.97 × 2.62 mm, OD 119.20 mm)	STEP · STL
o-ring-as568-158	AS568-158: ID 4.737 in × CS 0.103 in (Ø120.32 × 2.62 mm, OD 125.55 mm)	STEP · STL
o-ring-as568-159	AS568-159: ID 4.987 in × CS 0.103 in (Ø126.67 × 2.62 mm, OD 131.90 mm)	STEP · STL
o-ring-as568-160	AS568-160: ID 5.237 in × CS 0.103 in (Ø133.02 × 2.62 mm, OD 138.25 mm)	STEP · STL
o-ring-as568-161	AS568-161: ID 5.487 in × CS 0.103 in (Ø139.37 × 2.62 mm, OD 144.60 mm)	STEP · STL
o-ring-as568-162	AS568-162: ID 5.737 in × CS 0.103 in (Ø145.72 × 2.62 mm, OD 150.95 mm)	STEP · STL
o-ring-as568-163	AS568-163: ID 5.987 in × CS 0.103 in (Ø152.07 × 2.62 mm, OD 157.30 mm)	STEP · STL
o-ring-as568-164	AS568-164: ID 6.237 in × CS 0.103 in (Ø158.42 × 2.62 mm, OD 163.65 mm)	STEP · STL
o-ring-as568-165	AS568-165: ID 6.487 in × CS 0.103 in (Ø164.77 × 2.62 mm, OD 170.00 mm)	STEP · STL
o-ring-as568-166	AS568-166: ID 6.737 in × CS 0.103 in (Ø171.12 × 2.62 mm, OD 176.35 mm)	STEP · STL
o-ring-as568-167	AS568-167: ID 6.987 in × CS 0.103 in (Ø177.47 × 2.62 mm, OD 182.70 mm)	STEP · STL
o-ring-as568-168	AS568-168: ID 7.237 in × CS 0.103 in (Ø183.82 × 2.62 mm, OD 189.05 mm)	STEP · STL
o-ring-as568-169	AS568-169: ID 7.487 in × CS 0.103 in (Ø190.17 × 2.62 mm, OD 195.40 mm)	STEP · STL
o-ring-as568-170	AS568-170: ID 7.737 in × CS 0.103 in (Ø196.52 × 2.62 mm, OD 201.75 mm)	STEP · STL
o-ring-as568-171	AS568-171: ID 7.987 in × CS 0.103 in (Ø202.87 × 2.62 mm, OD 208.10 mm)	STEP · STL
o-ring-as568-172	AS568-172: ID 8.237 in × CS 0.103 in (Ø209.22 × 2.62 mm, OD 214.45 mm)	STEP · STL
o-ring-as568-173	AS568-173: ID 8.487 in × CS 0.103 in (Ø215.57 × 2.62 mm, OD 220.80 mm)	STEP · STL
o-ring-as568-174	AS568-174: ID 8.737 in × CS 0.103 in (Ø221.92 × 2.62 mm, OD 227.15 mm)	STEP · STL
o-ring-as568-175	AS568-175: ID 8.987 in × CS 0.103 in (Ø228.27 × 2.62 mm, OD 233.50 mm)	STEP · STL
o-ring-as568-176	AS568-176: ID 9.237 in × CS 0.103 in (Ø234.62 × 2.62 mm, OD 239.85 mm)	STEP · STL
o-ring-as568-177	AS568-177: ID 9.487 in × CS 0.103 in (Ø240.97 × 2.62 mm, OD 246.20 mm)	STEP · STL
o-ring-as568-178	AS568-178: ID 9.737 in × CS 0.103 in (Ø247.32 × 2.62 mm, OD 252.55 mm)	STEP · STL
o-ring-as568-201	AS568-201: ID 0.171 in × CS 0.139 in (Ø4.34 × 3.53 mm, OD 11.40 mm)	STEP · STL
o-ring-as568-202	AS568-202: ID 0.234 in × CS 0.139 in (Ø5.94 × 3.53 mm, OD 13.00 mm)	STEP · STL
o-ring-as568-203	AS568-203: ID 0.296 in × CS 0.139 in (Ø7.52 × 3.53 mm, OD 14.58 mm)	STEP · STL
o-ring-as568-204	AS568-204: ID 0.359 in × CS 0.139 in (Ø9.12 × 3.53 mm, OD 16.18 mm)	STEP · STL
o-ring-as568-205	AS568-205: ID 0.421 in × CS 0.139 in (Ø10.69 × 3.53 mm, OD 17.75 mm)	STEP · STL
o-ring-as568-206	AS568-206: ID 0.484 in × CS 0.139 in (Ø12.29 × 3.53 mm, OD 19.35 mm)	STEP · STL
o-ring-as568-207	AS568-207: ID 0.546 in × CS 0.139 in (Ø13.87 × 3.53 mm, OD 20.93 mm)	STEP · STL
o-ring-as568-208	AS568-208: ID 0.609 in × CS 0.139 in (Ø15.47 × 3.53 mm, OD 22.53 mm)	STEP · STL
o-ring-as568-209	AS568-209: ID 0.671 in × CS 0.139 in (Ø17.04 × 3.53 mm, OD 24.10 mm)	STEP · STL
o-ring-as568-210	AS568-210: ID 0.734 in × CS 0.139 in (Ø18.64 × 3.53 mm, OD 25.70 mm)	STEP · STL
o-ring-as568-211	AS568-211: ID 0.796 in × CS 0.139 in (Ø20.22 × 3.53 mm, OD 27.28 mm)	STEP · STL
o-ring-as568-212	AS568-212: ID 0.859 in × CS 0.139 in (Ø21.82 × 3.53 mm, OD 28.88 mm)	STEP · STL
o-ring-as568-213	AS568-213: ID 0.921 in × CS 0.139 in (Ø23.39 × 3.53 mm, OD 30.45 mm)	STEP · STL
o-ring-as568-214	AS568-214: ID 0.984 in × CS 0.139 in (Ø24.99 × 3.53 mm, OD 32.05 mm)	STEP · STL
o-ring-as568-215	AS568-215: ID 1.046 in × CS 0.139 in (Ø26.57 × 3.53 mm, OD 33.63 mm)	STEP · STL
o-ring-as568-216	AS568-216: ID 1.109 in × CS 0.139 in (Ø28.17 × 3.53 mm, OD 35.23 mm)	STEP · STL
o-ring-as568-217	AS568-217: ID 1.171 in × CS 0.139 in (Ø29.74 × 3.53 mm, OD 36.80 mm)	STEP · STL
o-ring-as568-218	AS568-218: ID 1.234 in × CS 0.139 in (Ø31.34 × 3.53 mm, OD 38.40 mm)	STEP · STL
o-ring-as568-219	AS568-219: ID 1.296 in × CS 0.139 in (Ø32.92 × 3.53 mm, OD 39.98 mm)	STEP · STL
o-ring-as568-220	AS568-220: ID 1.359 in × CS 0.139 in (Ø34.52 × 3.53 mm, OD 41.58 mm)	STEP · STL
o-ring-as568-221	AS568-221: ID 1.421 in × CS 0.139 in (Ø36.09 × 3.53 mm, OD 43.15 mm)	STEP · STL
o-ring-as568-222	AS568-222: ID 1.484 in × CS 0.139 in (Ø37.69 × 3.53 mm, OD 44.75 mm)	STEP · STL
o-ring-as568-223	AS568-223: ID 1.609 in × CS 0.139 in (Ø40.87 × 3.53 mm, OD 47.93 mm)	STEP · STL
o-ring-as568-224	AS568-224: ID 1.734 in × CS 0.139 in (Ø44.04 × 3.53 mm, OD 51.10 mm)	STEP · STL
o-ring-as568-225	AS568-225: ID 1.859 in × CS 0.139 in (Ø47.22 × 3.53 mm, OD 54.28 mm)	STEP · STL
o-ring-as568-226	AS568-226: ID 1.984 in × CS 0.139 in (Ø50.39 × 3.53 mm, OD 57.45 mm)	STEP · STL
o-ring-as568-227	AS568-227: ID 2.109 in × CS 0.139 in (Ø53.57 × 3.53 mm, OD 60.63 mm)	STEP · STL
o-ring-as568-228	AS568-228: ID 2.234 in × CS 0.139 in (Ø56.74 × 3.53 mm, OD 63.80 mm)	STEP · STL
o-ring-as568-229	AS568-229: ID 2.359 in × CS 0.139 in (Ø59.92 × 3.53 mm, OD 66.98 mm)	STEP · STL
o-ring-as568-230	AS568-230: ID 2.484 in × CS 0.139 in (Ø63.09 × 3.53 mm, OD 70.15 mm)	STEP · STL
o-ring-as568-231	AS568-231: ID 2.609 in × CS 0.139 in (Ø66.27 × 3.53 mm, OD 73.33 mm)	STEP · STL
o-ring-as568-232	AS568-232: ID 2.734 in × CS 0.139 in (Ø69.44 × 3.53 mm, OD 76.50 mm)	STEP · STL
o-ring-as568-233	AS568-233: ID 2.859 in × CS 0.139 in (Ø72.62 × 3.53 mm, OD 79.68 mm)	STEP · STL
o-ring-as568-234	AS568-234: ID 2.984 in × CS 0.139 in (Ø75.79 × 3.53 mm, OD 82.85 mm)	STEP · STL
o-ring-as568-235	AS568-235: ID 3.109 in × CS 0.139 in (Ø78.97 × 3.53 mm, OD 86.03 mm)	STEP · STL
o-ring-as568-236	AS568-236: ID 3.234 in × CS 0.139 in (Ø82.14 × 3.53 mm, OD 89.20 mm)	STEP · STL
o-ring-as568-237	AS568-237: ID 3.359 in × CS 0.139 in (Ø85.32 × 3.53 mm, OD 92.38 mm)	STEP · STL
o-ring-as568-238	AS568-238: ID 3.484 in × CS 0.139 in (Ø88.49 × 3.53 mm, OD 95.55 mm)	STEP · STL
o-ring-as568-239	AS568-239: ID 3.609 in × CS 0.139 in (Ø91.67 × 3.53 mm, OD 98.73 mm)	STEP · STL
o-ring-as568-240	AS568-240: ID 3.734 in × CS 0.139 in (Ø94.84 × 3.53 mm, OD 101.90 mm)	STEP · STL
o-ring-as568-241	AS568-241: ID 3.859 in × CS 0.139 in (Ø98.02 × 3.53 mm, OD 105.08 mm)	STEP · STL
o-ring-as568-242	AS568-242: ID 3.984 in × CS 0.139 in (Ø101.19 × 3.53 mm, OD 108.25 mm)	STEP · STL
o-ring-as568-243	AS568-243: ID 4.109 in × CS 0.139 in (Ø104.37 × 3.53 mm, OD 111.43 mm)	STEP · STL
o-ring-as568-244	AS568-244: ID 4.234 in × CS 0.139 in (Ø107.54 × 3.53 mm, OD 114.60 mm)	STEP · STL
o-ring-as568-245	AS568-245: ID 4.359 in × CS 0.139 in (Ø110.72 × 3.53 mm, OD 117.78 mm)	STEP · STL
o-ring-as568-246	AS568-246: ID 4.484 in × CS 0.139 in (Ø113.89 × 3.53 mm, OD 120.95 mm)	STEP · STL
o-ring-as568-247	AS568-247: ID 4.609 in × CS 0.139 in (Ø117.07 × 3.53 mm, OD 124.13 mm)	STEP · STL
o-ring-as568-248	AS568-248: ID 4.734 in × CS 0.139 in (Ø120.24 × 3.53 mm, OD 127.30 mm)	STEP · STL
o-ring-as568-249	AS568-249: ID 4.859 in × CS 0.139 in (Ø123.42 × 3.53 mm, OD 130.48 mm)	STEP · STL
o-ring-as568-250	AS568-250: ID 4.984 in × CS 0.139 in (Ø126.59 × 3.53 mm, OD 133.65 mm)	STEP · STL
o-ring-as568-251	AS568-251: ID 5.109 in × CS 0.139 in (Ø129.77 × 3.53 mm, OD 136.83 mm)	STEP · STL
o-ring-as568-252	AS568-252: ID 5.234 in × CS 0.139 in (Ø132.94 × 3.53 mm, OD 140.00 mm)	STEP · STL
o-ring-as568-253	AS568-253: ID 5.359 in × CS 0.139 in (Ø136.12 × 3.53 mm, OD 143.18 mm)	STEP · STL
o-ring-as568-254	AS568-254: ID 5.484 in × CS 0.139 in (Ø139.29 × 3.53 mm, OD 146.35 mm)	STEP · STL
o-ring-as568-255	AS568-255: ID 5.609 in × CS 0.139 in (Ø142.47 × 3.53 mm, OD 149.53 mm)	STEP · STL
o-ring-as568-256	AS568-256: ID 5.734 in × CS 0.139 in (Ø145.64 × 3.53 mm, OD 152.70 mm)	STEP · STL
o-ring-as568-257	AS568-257: ID 5.859 in × CS 0.139 in (Ø148.82 × 3.53 mm, OD 155.88 mm)	STEP · STL
o-ring-as568-258	AS568-258: ID 5.984 in × CS 0.139 in (Ø151.99 × 3.53 mm, OD 159.05 mm)	STEP · STL
o-ring-as568-259	AS568-259: ID 6.234 in × CS 0.139 in (Ø158.34 × 3.53 mm, OD 165.40 mm)	STEP · STL
o-ring-as568-260	AS568-260: ID 6.484 in × CS 0.139 in (Ø164.69 × 3.53 mm, OD 171.75 mm)	STEP · STL
o-ring-as568-261	AS568-261: ID 6.734 in × CS 0.139 in (Ø171.04 × 3.53 mm, OD 178.10 mm)	STEP · STL
o-ring-as568-262	AS568-262: ID 6.984 in × CS 0.139 in (Ø177.39 × 3.53 mm, OD 184.45 mm)	STEP · STL
o-ring-as568-263	AS568-263: ID 7.234 in × CS 0.139 in (Ø183.74 × 3.53 mm, OD 190.80 mm)	STEP · STL
o-ring-as568-264	AS568-264: ID 7.484 in × CS 0.139 in (Ø190.09 × 3.53 mm, OD 197.15 mm)	STEP · STL
o-ring-as568-265	AS568-265: ID 7.734 in × CS 0.139 in (Ø196.44 × 3.53 mm, OD 203.50 mm)	STEP · STL
o-ring-as568-266	AS568-266: ID 7.984 in × CS 0.139 in (Ø202.79 × 3.53 mm, OD 209.85 mm)	STEP · STL
o-ring-as568-267	AS568-267: ID 8.234 in × CS 0.139 in (Ø209.14 × 3.53 mm, OD 216.20 mm)	STEP · STL
o-ring-as568-268	AS568-268: ID 8.484 in × CS 0.139 in (Ø215.49 × 3.53 mm, OD 222.55 mm)	STEP · STL
o-ring-as568-269	AS568-269: ID 8.734 in × CS 0.139 in (Ø221.84 × 3.53 mm, OD 228.90 mm)	STEP · STL
o-ring-as568-270	AS568-270: ID 8.984 in × CS 0.139 in (Ø228.19 × 3.53 mm, OD 235.25 mm)	STEP · STL
o-ring-as568-271	AS568-271: ID 9.234 in × CS 0.139 in (Ø234.54 × 3.53 mm, OD 241.60 mm)	STEP · STL
o-ring-as568-272	AS568-272: ID 9.484 in × CS 0.139 in (Ø240.89 × 3.53 mm, OD 247.95 mm)	STEP · STL
o-ring-as568-273	AS568-273: ID 9.734 in × CS 0.139 in (Ø247.24 × 3.53 mm, OD 254.30 mm)	STEP · STL
o-ring-as568-274	AS568-274: ID 9.984 in × CS 0.139 in (Ø253.59 × 3.53 mm, OD 260.65 mm)	STEP · STL
o-ring-as568-275	AS568-275: ID 10.484 in × CS 0.139 in (Ø266.29 × 3.53 mm, OD 273.35 mm)	STEP · STL
o-ring-as568-276	AS568-276: ID 10.984 in × CS 0.139 in (Ø278.99 × 3.53 mm, OD 286.05 mm)	STEP · STL
o-ring-as568-277	AS568-277: ID 11.484 in × CS 0.139 in (Ø291.69 × 3.53 mm, OD 298.75 mm)	STEP · STL
o-ring-as568-278	AS568-278: ID 11.984 in × CS 0.139 in (Ø304.39 × 3.53 mm, OD 311.45 mm)	STEP · STL
o-ring-as568-279	AS568-279: ID 12.984 in × CS 0.139 in (Ø329.79 × 3.53 mm, OD 336.85 mm)	STEP · STL
o-ring-as568-280	AS568-280: ID 13.984 in × CS 0.139 in (Ø355.19 × 3.53 mm, OD 362.25 mm)	STEP · STL
o-ring-as568-281	AS568-281: ID 14.984 in × CS 0.139 in (Ø380.59 × 3.53 mm, OD 387.65 mm)	STEP · STL
o-ring-as568-282	AS568-282: ID 15.955 in × CS 0.139 in (Ø405.26 × 3.53 mm, OD 412.32 mm)	STEP · STL
o-ring-as568-283	AS568-283: ID 16.955 in × CS 0.139 in (Ø430.66 × 3.53 mm, OD 437.72 mm)	STEP · STL
o-ring-as568-284	AS568-284: ID 17.955 in × CS 0.139 in (Ø456.06 × 3.53 mm, OD 463.12 mm)	STEP · STL
o-ring-as568-309	AS568-309: ID 0.412 in × CS 0.210 in (Ø10.46 × 5.33 mm, OD 21.13 mm)	STEP · STL
o-ring-as568-310	AS568-310: ID 0.475 in × CS 0.210 in (Ø12.06 × 5.33 mm, OD 22.73 mm)	STEP · STL
o-ring-as568-311	AS568-311: ID 0.537 in × CS 0.210 in (Ø13.64 × 5.33 mm, OD 24.31 mm)	STEP · STL
o-ring-as568-312	AS568-312: ID 0.600 in × CS 0.210 in (Ø15.24 × 5.33 mm, OD 25.91 mm)	STEP · STL
o-ring-as568-313	AS568-313: ID 0.662 in × CS 0.210 in (Ø16.81 × 5.33 mm, OD 27.48 mm)	STEP · STL
o-ring-as568-314	AS568-314: ID 0.725 in × CS 0.210 in (Ø18.41 × 5.33 mm, OD 29.08 mm)	STEP · STL
o-ring-as568-315	AS568-315: ID 0.787 in × CS 0.210 in (Ø19.99 × 5.33 mm, OD 30.66 mm)	STEP · STL
o-ring-as568-316	AS568-316: ID 0.850 in × CS 0.210 in (Ø21.59 × 5.33 mm, OD 32.26 mm)	STEP · STL
o-ring-as568-317	AS568-317: ID 0.912 in × CS 0.210 in (Ø23.16 × 5.33 mm, OD 33.83 mm)	STEP · STL
o-ring-as568-318	AS568-318: ID 0.975 in × CS 0.210 in (Ø24.76 × 5.33 mm, OD 35.43 mm)	STEP · STL
o-ring-as568-319	AS568-319: ID 1.037 in × CS 0.210 in (Ø26.34 × 5.33 mm, OD 37.01 mm)	STEP · STL
o-ring-as568-320	AS568-320: ID 1.100 in × CS 0.210 in (Ø27.94 × 5.33 mm, OD 38.61 mm)	STEP · STL
o-ring-as568-321	AS568-321: ID 1.162 in × CS 0.210 in (Ø29.51 × 5.33 mm, OD 40.18 mm)	STEP · STL
o-ring-as568-322	AS568-322: ID 1.225 in × CS 0.210 in (Ø31.12 × 5.33 mm, OD 41.78 mm)	STEP · STL
o-ring-as568-323	AS568-323: ID 1.287 in × CS 0.210 in (Ø32.69 × 5.33 mm, OD 43.36 mm)	STEP · STL
o-ring-as568-324	AS568-324: ID 1.350 in × CS 0.210 in (Ø34.29 × 5.33 mm, OD 44.96 mm)	STEP · STL
o-ring-as568-325	AS568-325: ID 1.475 in × CS 0.210 in (Ø37.47 × 5.33 mm, OD 48.13 mm)	STEP · STL
o-ring-as568-326	AS568-326: ID 1.600 in × CS 0.210 in (Ø40.64 × 5.33 mm, OD 51.31 mm)	STEP · STL
o-ring-as568-327	AS568-327: ID 1.725 in × CS 0.210 in (Ø43.81 × 5.33 mm, OD 54.48 mm)	STEP · STL
o-ring-as568-328	AS568-328: ID 1.850 in × CS 0.210 in (Ø46.99 × 5.33 mm, OD 57.66 mm)	STEP · STL
o-ring-as568-329	AS568-329: ID 1.975 in × CS 0.210 in (Ø50.16 × 5.33 mm, OD 60.83 mm)	STEP · STL
o-ring-as568-330	AS568-330: ID 2.100 in × CS 0.210 in (Ø53.34 × 5.33 mm, OD 64.01 mm)	STEP · STL
o-ring-as568-331	AS568-331: ID 2.225 in × CS 0.210 in (Ø56.52 × 5.33 mm, OD 67.18 mm)	STEP · STL
o-ring-as568-332	AS568-332: ID 2.350 in × CS 0.210 in (Ø59.69 × 5.33 mm, OD 70.36 mm)	STEP · STL
o-ring-as568-333	AS568-333: ID 2.475 in × CS 0.210 in (Ø62.87 × 5.33 mm, OD 73.53 mm)	STEP · STL
o-ring-as568-334	AS568-334: ID 2.600 in × CS 0.210 in (Ø66.04 × 5.33 mm, OD 76.71 mm)	STEP · STL
o-ring-as568-335	AS568-335: ID 2.725 in × CS 0.210 in (Ø69.22 × 5.33 mm, OD 79.88 mm)	STEP · STL
o-ring-as568-336	AS568-336: ID 2.850 in × CS 0.210 in (Ø72.39 × 5.33 mm, OD 83.06 mm)	STEP · STL
o-ring-as568-337	AS568-337: ID 2.975 in × CS 0.210 in (Ø75.56 × 5.33 mm, OD 86.23 mm)	STEP · STL
o-ring-as568-338	AS568-338: ID 3.100 in × CS 0.210 in (Ø78.74 × 5.33 mm, OD 89.41 mm)	STEP · STL
o-ring-as568-339	AS568-339: ID 3.225 in × CS 0.210 in (Ø81.91 × 5.33 mm, OD 92.58 mm)	STEP · STL
o-ring-as568-340	AS568-340: ID 3.350 in × CS 0.210 in (Ø85.09 × 5.33 mm, OD 95.76 mm)	STEP · STL
o-ring-as568-341	AS568-341: ID 3.475 in × CS 0.210 in (Ø88.27 × 5.33 mm, OD 98.93 mm)	STEP · STL
o-ring-as568-342	AS568-342: ID 3.600 in × CS 0.210 in (Ø91.44 × 5.33 mm, OD 102.11 mm)	STEP · STL
o-ring-as568-343	AS568-343: ID 3.725 in × CS 0.210 in (Ø94.61 × 5.33 mm, OD 105.28 mm)	STEP · STL
o-ring-as568-344	AS568-344: ID 3.850 in × CS 0.210 in (Ø97.79 × 5.33 mm, OD 108.46 mm)	STEP · STL
o-ring-as568-345	AS568-345: ID 3.975 in × CS 0.210 in (Ø100.97 × 5.33 mm, OD 111.63 mm)	STEP · STL
o-ring-as568-346	AS568-346: ID 4.100 in × CS 0.210 in (Ø104.14 × 5.33 mm, OD 114.81 mm)	STEP · STL
o-ring-as568-347	AS568-347: ID 4.225 in × CS 0.210 in (Ø107.31 × 5.33 mm, OD 117.98 mm)	STEP · STL
o-ring-as568-348	AS568-348: ID 4.350 in × CS 0.210 in (Ø110.49 × 5.33 mm, OD 121.16 mm)	STEP · STL
o-ring-as568-349	AS568-349: ID 4.475 in × CS 0.210 in (Ø113.66 × 5.33 mm, OD 124.33 mm)	STEP · STL
o-ring-as568-350	AS568-350: ID 4.600 in × CS 0.210 in (Ø116.84 × 5.33 mm, OD 127.51 mm)	STEP · STL
o-ring-as568-351	AS568-351: ID 4.725 in × CS 0.210 in (Ø120.01 × 5.33 mm, OD 130.68 mm)	STEP · STL
o-ring-as568-352	AS568-352: ID 4.850 in × CS 0.210 in (Ø123.19 × 5.33 mm, OD 133.86 mm)	STEP · STL
o-ring-as568-353	AS568-353: ID 4.975 in × CS 0.210 in (Ø126.36 × 5.33 mm, OD 137.03 mm)	STEP · STL
o-ring-as568-354	AS568-354: ID 5.100 in × CS 0.210 in (Ø129.54 × 5.33 mm, OD 140.21 mm)	STEP · STL
o-ring-as568-355	AS568-355: ID 5.225 in × CS 0.210 in (Ø132.71 × 5.33 mm, OD 143.38 mm)	STEP · STL
o-ring-as568-356	AS568-356: ID 5.350 in × CS 0.210 in (Ø135.89 × 5.33 mm, OD 146.56 mm)	STEP · STL
o-ring-as568-357	AS568-357: ID 5.475 in × CS 0.210 in (Ø139.06 × 5.33 mm, OD 149.73 mm)	STEP · STL
o-ring-as568-358	AS568-358: ID 5.600 in × CS 0.210 in (Ø142.24 × 5.33 mm, OD 152.91 mm)	STEP · STL
o-ring-as568-359	AS568-359: ID 5.725 in × CS 0.210 in (Ø145.41 × 5.33 mm, OD 156.08 mm)	STEP · STL
o-ring-as568-360	AS568-360: ID 5.850 in × CS 0.210 in (Ø148.59 × 5.33 mm, OD 159.26 mm)	STEP · STL
o-ring-as568-361	AS568-361: ID 5.975 in × CS 0.210 in (Ø151.76 × 5.33 mm, OD 162.43 mm)	STEP · STL
o-ring-as568-362	AS568-362: ID 6.225 in × CS 0.210 in (Ø158.11 × 5.33 mm, OD 168.78 mm)	STEP · STL
o-ring-as568-363	AS568-363: ID 6.475 in × CS 0.210 in (Ø164.46 × 5.33 mm, OD 175.13 mm)	STEP · STL
o-ring-as568-364	AS568-364: ID 6.725 in × CS 0.210 in (Ø170.81 × 5.33 mm, OD 181.48 mm)	STEP · STL
o-ring-as568-365	AS568-365: ID 6.975 in × CS 0.210 in (Ø177.16 × 5.33 mm, OD 187.83 mm)	STEP · STL
o-ring-as568-366	AS568-366: ID 7.225 in × CS 0.210 in (Ø183.51 × 5.33 mm, OD 194.18 mm)	STEP · STL
o-ring-as568-367	AS568-367: ID 7.475 in × CS 0.210 in (Ø189.86 × 5.33 mm, OD 200.53 mm)	STEP · STL
o-ring-as568-368	AS568-368: ID 7.725 in × CS 0.210 in (Ø196.21 × 5.33 mm, OD 206.88 mm)	STEP · STL
o-ring-as568-369	AS568-369: ID 7.975 in × CS 0.210 in (Ø202.56 × 5.33 mm, OD 213.23 mm)	STEP · STL
o-ring-as568-370	AS568-370: ID 8.225 in × CS 0.210 in (Ø208.91 × 5.33 mm, OD 219.58 mm)	STEP · STL
o-ring-as568-371	AS568-371: ID 8.475 in × CS 0.210 in (Ø215.26 × 5.33 mm, OD 225.93 mm)	STEP · STL
o-ring-as568-372	AS568-372: ID 8.725 in × CS 0.210 in (Ø221.61 × 5.33 mm, OD 232.28 mm)	STEP · STL
o-ring-as568-373	AS568-373: ID 8.975 in × CS 0.210 in (Ø227.96 × 5.33 mm, OD 238.63 mm)	STEP · STL
o-ring-as568-374	AS568-374: ID 9.225 in × CS 0.210 in (Ø234.31 × 5.33 mm, OD 244.98 mm)	STEP · STL
o-ring-as568-375	AS568-375: ID 9.475 in × CS 0.210 in (Ø240.66 × 5.33 mm, OD 251.33 mm)	STEP · STL
o-ring-as568-376	AS568-376: ID 9.725 in × CS 0.210 in (Ø247.01 × 5.33 mm, OD 257.68 mm)	STEP · STL
o-ring-as568-377	AS568-377: ID 9.975 in × CS 0.210 in (Ø253.36 × 5.33 mm, OD 264.03 mm)	STEP · STL
o-ring-as568-378	AS568-378: ID 10.475 in × CS 0.210 in (Ø266.06 × 5.33 mm, OD 276.73 mm)	STEP · STL
o-ring-as568-379	AS568-379: ID 10.975 in × CS 0.210 in (Ø278.76 × 5.33 mm, OD 289.43 mm)	STEP · STL
o-ring-as568-380	AS568-380: ID 11.475 in × CS 0.210 in (Ø291.46 × 5.33 mm, OD 302.13 mm)	STEP · STL
o-ring-as568-381	AS568-381: ID 11.975 in × CS 0.210 in (Ø304.16 × 5.33 mm, OD 314.83 mm)	STEP · STL
o-ring-as568-382	AS568-382: ID 12.975 in × CS 0.210 in (Ø329.56 × 5.33 mm, OD 340.23 mm)	STEP · STL
o-ring-as568-383	AS568-383: ID 13.975 in × CS 0.210 in (Ø354.96 × 5.33 mm, OD 365.63 mm)	STEP · STL
o-ring-as568-384	AS568-384: ID 14.975 in × CS 0.210 in (Ø380.36 × 5.33 mm, OD 391.03 mm)	STEP · STL
o-ring-as568-385	AS568-385: ID 15.955 in × CS 0.210 in (Ø405.26 × 5.33 mm, OD 415.93 mm)	STEP · STL
o-ring-as568-386	AS568-386: ID 16.955 in × CS 0.210 in (Ø430.66 × 5.33 mm, OD 441.32 mm)	STEP · STL
o-ring-as568-387	AS568-387: ID 17.955 in × CS 0.210 in (Ø456.06 × 5.33 mm, OD 466.72 mm)	STEP · STL
o-ring-as568-388	AS568-388: ID 18.955 in × CS 0.210 in (Ø481.46 × 5.33 mm, OD 492.12 mm)	STEP · STL
o-ring-as568-389	AS568-389: ID 19.955 in × CS 0.210 in (Ø506.86 × 5.33 mm, OD 517.52 mm)	STEP · STL
o-ring-as568-390	AS568-390: ID 20.955 in × CS 0.210 in (Ø532.26 × 5.33 mm, OD 542.92 mm)	STEP · STL
o-ring-as568-391	AS568-391: ID 21.955 in × CS 0.210 in (Ø557.66 × 5.33 mm, OD 568.32 mm)	STEP · STL
o-ring-as568-392	AS568-392: ID 22.940 in × CS 0.210 in (Ø582.68 × 5.33 mm, OD 593.34 mm)	STEP · STL
o-ring-as568-393	AS568-393: ID 23.940 in × CS 0.210 in (Ø608.08 × 5.33 mm, OD 618.74 mm)	STEP · STL
o-ring-as568-394	AS568-394: ID 24.940 in × CS 0.210 in (Ø633.48 × 5.33 mm, OD 644.14 mm)	STEP · STL
o-ring-as568-395	AS568-395: ID 25.940 in × CS 0.210 in (Ø658.88 × 5.33 mm, OD 669.54 mm)	STEP · STL
o-ring-as568-425	AS568-425: ID 4.475 in × CS 0.275 in (Ø113.66 × 6.99 mm, OD 127.63 mm)	STEP · STL
o-ring-as568-426	AS568-426: ID 4.600 in × CS 0.275 in (Ø116.84 × 6.99 mm, OD 130.81 mm)	STEP · STL
o-ring-as568-427	AS568-427: ID 4.725 in × CS 0.275 in (Ø120.01 × 6.99 mm, OD 133.98 mm)	STEP · STL
o-ring-as568-428	AS568-428: ID 4.850 in × CS 0.275 in (Ø123.19 × 6.99 mm, OD 137.16 mm)	STEP · STL
o-ring-as568-429	AS568-429: ID 4.975 in × CS 0.275 in (Ø126.36 × 6.99 mm, OD 140.33 mm)	STEP · STL
o-ring-as568-430	AS568-430: ID 5.100 in × CS 0.275 in (Ø129.54 × 6.99 mm, OD 143.51 mm)	STEP · STL
o-ring-as568-431	AS568-431: ID 5.225 in × CS 0.275 in (Ø132.71 × 6.99 mm, OD 146.68 mm)	STEP · STL
o-ring-as568-432	AS568-432: ID 5.350 in × CS 0.275 in (Ø135.89 × 6.99 mm, OD 149.86 mm)	STEP · STL
o-ring-as568-433	AS568-433: ID 5.475 in × CS 0.275 in (Ø139.06 × 6.99 mm, OD 153.03 mm)	STEP · STL
o-ring-as568-434	AS568-434: ID 5.600 in × CS 0.275 in (Ø142.24 × 6.99 mm, OD 156.21 mm)	STEP · STL
o-ring-as568-435	AS568-435: ID 5.725 in × CS 0.275 in (Ø145.41 × 6.99 mm, OD 159.38 mm)	STEP · STL
o-ring-as568-436	AS568-436: ID 5.850 in × CS 0.275 in (Ø148.59 × 6.99 mm, OD 162.56 mm)	STEP · STL
o-ring-as568-437	AS568-437: ID 5.975 in × CS 0.275 in (Ø151.76 × 6.99 mm, OD 165.73 mm)	STEP · STL
o-ring-as568-438	AS568-438: ID 6.225 in × CS 0.275 in (Ø158.11 × 6.99 mm, OD 172.08 mm)	STEP · STL
o-ring-as568-439	AS568-439: ID 6.475 in × CS 0.275 in (Ø164.46 × 6.99 mm, OD 178.43 mm)	STEP · STL
o-ring-as568-440	AS568-440: ID 6.725 in × CS 0.275 in (Ø170.81 × 6.99 mm, OD 184.78 mm)	STEP · STL
o-ring-as568-441	AS568-441: ID 6.975 in × CS 0.275 in (Ø177.16 × 6.99 mm, OD 191.13 mm)	STEP · STL
o-ring-as568-442	AS568-442: ID 7.225 in × CS 0.275 in (Ø183.51 × 6.99 mm, OD 197.48 mm)	STEP · STL
o-ring-as568-443	AS568-443: ID 7.475 in × CS 0.275 in (Ø189.86 × 6.99 mm, OD 203.83 mm)	STEP · STL
o-ring-as568-444	AS568-444: ID 7.725 in × CS 0.275 in (Ø196.21 × 6.99 mm, OD 210.18 mm)	STEP · STL
o-ring-as568-445	AS568-445: ID 7.975 in × CS 0.275 in (Ø202.56 × 6.99 mm, OD 216.53 mm)	STEP · STL
o-ring-as568-446	AS568-446: ID 8.475 in × CS 0.275 in (Ø215.26 × 6.99 mm, OD 229.23 mm)	STEP · STL
o-ring-as568-447	AS568-447: ID 8.975 in × CS 0.275 in (Ø227.96 × 6.99 mm, OD 241.93 mm)	STEP · STL
o-ring-as568-448	AS568-448: ID 9.475 in × CS 0.275 in (Ø240.66 × 6.99 mm, OD 254.63 mm)	STEP · STL
o-ring-as568-449	AS568-449: ID 9.975 in × CS 0.275 in (Ø253.36 × 6.99 mm, OD 267.33 mm)	STEP · STL
o-ring-as568-450	AS568-450: ID 10.475 in × CS 0.275 in (Ø266.06 × 6.99 mm, OD 280.04 mm)	STEP · STL
o-ring-as568-451	AS568-451: ID 10.975 in × CS 0.275 in (Ø278.76 × 6.99 mm, OD 292.74 mm)	STEP · STL
o-ring-as568-452	AS568-452: ID 11.475 in × CS 0.275 in (Ø291.46 × 6.99 mm, OD 305.44 mm)	STEP · STL
o-ring-as568-453	AS568-453: ID 11.975 in × CS 0.275 in (Ø304.16 × 6.99 mm, OD 318.13 mm)	STEP · STL
o-ring-as568-454	AS568-454: ID 12.475 in × CS 0.275 in (Ø316.86 × 6.99 mm, OD 330.83 mm)	STEP · STL
o-ring-as568-455	AS568-455: ID 12.975 in × CS 0.275 in (Ø329.56 × 6.99 mm, OD 343.54 mm)	STEP · STL
o-ring-as568-456	AS568-456: ID 13.475 in × CS 0.275 in (Ø342.26 × 6.99 mm, OD 356.24 mm)	STEP · STL
o-ring-as568-457	AS568-457: ID 13.975 in × CS 0.275 in (Ø354.96 × 6.99 mm, OD 368.94 mm)	STEP · STL
o-ring-as568-458	AS568-458: ID 14.475 in × CS 0.275 in (Ø367.66 × 6.99 mm, OD 381.63 mm)	STEP · STL
o-ring-as568-459	AS568-459: ID 14.975 in × CS 0.275 in (Ø380.36 × 6.99 mm, OD 394.33 mm)	STEP · STL
o-ring-as568-460	AS568-460: ID 15.475 in × CS 0.275 in (Ø393.06 × 6.99 mm, OD 407.03 mm)	STEP · STL
o-ring-as568-461	AS568-461: ID 15.955 in × CS 0.275 in (Ø405.26 × 6.99 mm, OD 419.23 mm)	STEP · STL
o-ring-as568-462	AS568-462: ID 16.455 in × CS 0.275 in (Ø417.96 × 6.99 mm, OD 431.93 mm)	STEP · STL
o-ring-as568-463	AS568-463: ID 16.955 in × CS 0.275 in (Ø430.66 × 6.99 mm, OD 444.63 mm)	STEP · STL
o-ring-as568-464	AS568-464: ID 17.455 in × CS 0.275 in (Ø443.36 × 6.99 mm, OD 457.33 mm)	STEP · STL
o-ring-as568-465	AS568-465: ID 17.955 in × CS 0.275 in (Ø456.06 × 6.99 mm, OD 470.03 mm)	STEP · STL
o-ring-as568-466	AS568-466: ID 18.455 in × CS 0.275 in (Ø468.76 × 6.99 mm, OD 482.73 mm)	STEP · STL
o-ring-as568-467	AS568-467: ID 18.955 in × CS 0.275 in (Ø481.46 × 6.99 mm, OD 495.43 mm)	STEP · STL
o-ring-as568-468	AS568-468: ID 19.455 in × CS 0.275 in (Ø494.16 × 6.99 mm, OD 508.13 mm)	STEP · STL
o-ring-as568-469	AS568-469: ID 19.955 in × CS 0.275 in (Ø506.86 × 6.99 mm, OD 520.83 mm)	STEP · STL
o-ring-as568-470	AS568-470: ID 20.955 in × CS 0.275 in (Ø532.26 × 6.99 mm, OD 546.23 mm)	STEP · STL
o-ring-as568-471	AS568-471: ID 21.955 in × CS 0.275 in (Ø557.66 × 6.99 mm, OD 571.63 mm)	STEP · STL
o-ring-as568-472	AS568-472: ID 22.940 in × CS 0.275 in (Ø582.68 × 6.99 mm, OD 596.65 mm)	STEP · STL
o-ring-as568-473	AS568-473: ID 23.940 in × CS 0.275 in (Ø608.08 × 6.99 mm, OD 622.05 mm)	STEP · STL
o-ring-as568-474	AS568-474: ID 24.940 in × CS 0.275 in (Ø633.48 × 6.99 mm, OD 647.45 mm)	STEP · STL
o-ring-as568-475	AS568-475: ID 25.940 in × CS 0.275 in (Ø658.88 × 6.99 mm, OD 672.85 mm)	STEP · STL

Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.

Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=as568-o-rings
