Motor-mount plate for a 2 in tri-clamp cross: clamps between two faces, holds a 2208 gimbal motor inside

Name: Motor-mount plate for a 2 in tri-clamp cross: clamps between two faces, holds a 2208 gimbal motor inside dimension sheet
Creator: Xem Studio
License: https://creativecommons.org/licenses/by/4.0/

How do I mount a motor inside a sealed tri-clamp vessel? · Hardware · basis: ISO 2852 face and 20° back on both sides as the clamp-in bearing plate on this site (16 mm face to face for two standard clamps); motor base holes (4-M3 on 19 × 16) from the 2208 listing; ISO 273 medium clearance for M3 and ISO 10642 countersink (90°, Ø6)

Long Earth Society build part. The plate my generator motor hangs from inside the crankcase. The engines

Exact dimensions. Every file is drawn at true size with no printing tolerance. The holes and pins that meet another part are listed below under Mating features, with the fit each joint needs; open those by your printer's or process's clearance before making the part. Mating features

sizes: 6 in table

Notes

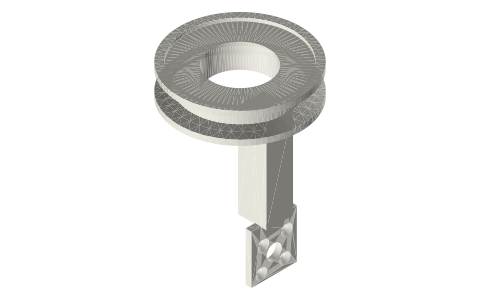

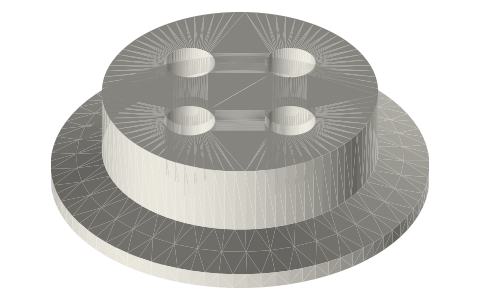

A ring clamped between the cross's top face and the port cap, like a thick gasket, each side its own Type B gasket and clamp. Its Ø30 bore lets the gas and the motor's three leads through to the port cap.
From the ring a column hangs down the cross's top run to a mount face 62.1 mm below the plate. The motor's base bolts to it with four M3 × 6 countersunk screws whose heads sit flush, because the top run leaves no room for heads behind the face. The holes follow the motor's 16 and 19 mm pairs, turned 45° so the face stays inside the Ø47.5 bore.
Everything stays inside the bore and inside the gasket lip (Ø45.3) where it passes the joint. The motor hangs over the crank, its axis parallel to the crankshaft, its pinion in mesh with the crank gear.

Sizes

feature	value
faces	ISO 2852 both sides, 2 in
face to face	16.0
bore	Ø30
column	x 6–21, \|y\| ≤ 7
mount face	3 thick, \|y\| ≤ 12, 4 × Ø3.4 csk Ø6 × 90°
motor axis below the inner face	62.1

Mating features

Drawn at the exact size. Open press, slide, run and socket features by your process's clearance; leave designed gaps and clamp fits as drawn.

feature	exact	mates with	fit	files
faces	ISO 2852 both sides (land Ø56.5–Ø64, rim 2.85, 1.6 recess, 20° back to Ø50.8)	standard clamps + Type B gaskets	clamp	all
mount face holes	4 × Ø3.4, 90° countersink Ø6, 16 / 19 pattern turned 45°	csk-m3x6 into the motor base	designed	all
mount face	flat, x 15 from the cross axis	2208 motor base	designed	all
bore	Ø30	gas and the motor leads to the port cap	designed	all

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

ISO (via iTeh sample)	ISO 2852 clamp liners: face profile and flange / groove diameters	PDF	standard excerpt; dimensions are facts
ASME	BPE Bioprocessing Equipment (clamp fitting dimensions, tube OD and wall)	standard	ASME; dimensions are facts verify
ISO	ISO 273 clearance holes for bolts and screws (fine / medium / coarse)	standard	dimensions are facts verify

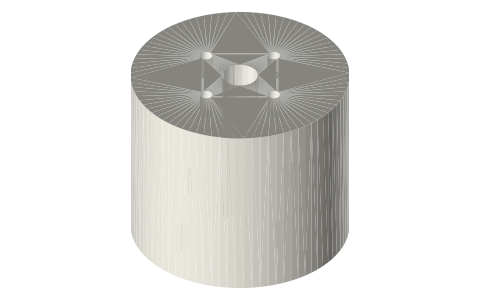

GetFPV (product listing)	Tiger GB2208-80 gimbal motor: 27.5 × 23, 4.5 hollow shaft, stator 4-M3 on 19 × 16, rotor 4-M2 on 12 × 12	web	vendor page; dimensions are facts verify
Long Earth Society	Engine builds	web, video	LES site

Free files

★ Free files 1 parts. Generated by Xem Studio from the standard; threads are plain cylinders at major diameter. CC BY 4.0. index.json

motor-mount-plate-2in-2208

motor-mount plate: ISO 2852 face and 20° back on both sides, 16 face to face, Ø30 bore; column x 6–21, |y| ≤ 7 hanging 47.3 below the inner face; mount face x 15–18, |y| ≤ 12, 4 × Ø3.4 countersunk 90° to Ø6 with a 0.2 rim (ISO 10642 head) on the 16 / 19 pattern turned 45°, Ø8 centre relief; motor axis 62.1 below the inner face

STEP · STL

Plain text: sheet.txt · JSON: /api/geometry?object=tri-clamp-motor-mount-plate
