2020 aluminum extrusion, 6 mm slot (20-series)

What are the exact dimensions of 2020 aluminum extrusion? · Hardware · basis: Misumi 5 series, 6 mm slot, from Misumi's dimensioned drawing of this profile; every slot, lip, cavity, bore and outline number is the drawing's

Exact dimensions. Every file is drawn at true size with no printing tolerance. The holes and pins that meet another part are listed below under Mating features, with the fit each joint needs; open those by your printer's or process's clearance before making the part. Mating features

width
20.0 mm
height
20.0 mm

Notes

  • 2020 aluminum extrusion, 6 mm slot (20-series): 20 × 20 mm, 4 slots on a 20 mm pitch (Misumi 5 series, 6 mm slot). Source: Misumi's dimensioned drawing of this profile. Files: STEP and STL at 100, 150, 200, 300, 400, 1000 mm with square ends, and a DXF of the exact cross-section (mm), the master to extrude to any length. The section is centred on the origin and extruded along +Z from z = 0.
  • Slot: opening 6 mm, lip 2 mm thick at the opening, cavity 12 mm wide under the lips, 6 mm from the face to the cavity floor. Centre bore Ø4.2 mm per cell (the M5 tap drill).
  • Cavity side walls: the cavity is 12 mm wide under the lips, then follows the diagonal webs (1.5 mm thick, stated) down to the floor; the webs lie on the cell diagonals (45°), as drawn. The web thickness is stated on this series' 2060, 2080 and 4040 drawings.
  • Outer corners R1 (stated).
  • Wrapping it: to make a part that fits around the bar, subtract the 1000 mm file (or extrude the DXF) from your solid; the outline is the drawing's 20 × 20 mm with no allowance, so open the pocket by your process's socket fit (see Mating features).
  • Attachments: the 20-series (6 mm slot) T-nuts, end caps, feet, brackets, gussets, plates and slot covers are cut from these same numbers; the fit check (tools/asm_extrusion_fit.py) placed each one on this profile with zero overlap.

Sizes

featuresizefrom
outline20 × 20 mm, R1 cornersdrawing
slot pitch20 mmdrawing
slot opening6 mmdrawing
lip thickness at the opening2 mmdrawing
cavity width under the lips12 mmdrawing
face to cavity floor6 mmdrawing
cavity depth under the lip (at the cavity wall)4 mmdrawing
core between opposite floors8 mmpitch − 2 × face-to-floor
diagonal web1.5 mmdrawing
centre boreØ4.2 mm × 1drawing
cross-section area183 mm²maker's page
mass0.5 kg/mmaker's page
Ix / Iy0.742 × 10⁴ / 0.742 × 10⁴ mm⁴maker's page
area of this model's section182.8 mm²computed from the DXF

Mating features

Drawn at the exact size. Open press, slide, run and socket features by your process's clearance; leave designed gaps and clamp fits as drawn.

featureexactmates withfitfiles
slot opening6T-nut tongue, slot-cover stem (20-series (6 mm slot))slideall
slot cavity12 wide under the lips, face to floor 6, lip 2T-nut body (slide-in, drop-in)slideall
centre boreØ4.2M5 thread (tap drill 4.2); end-cap pindesignedall
outline20 × 20, R1end-cap outline, foot socket, a pocket that wraps the barsocketall

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

Misumi20x20 Aluminum Extrusion - 5 Series, Base 20: product page with the cross-section drawing and section propertieswebMisumi site terms verify
Misumi2020 dimensioned cross-section drawingimageMisumi site terms verify
Misumi40x40, 5 series drawing (states the 1.5 mm diagonal web and 2 mm face wall of this series)imageMisumi site terms verify

Free files

★ Free files 6 parts. Generated by Xem Studio from the standard; threads are plain cylinders at major diameter. CC BY 4.0. index.json

2020-1002020 aluminum extrusion, 6 mm slot (20-series): 20 × 20 mm section, 100 mm long, square ends; DXF = the exact cross-section in mmSTEP · STL · DXF
2020-1502020 aluminum extrusion, 6 mm slot (20-series): 20 × 20 mm section, 150 mm long, square ends (a tri-clamp engine stand length); DXF = the exact cross-section in mmSTEP · STL · DXF
2020-2002020 aluminum extrusion, 6 mm slot (20-series): 20 × 20 mm section, 200 mm long, square ends (a tri-clamp engine stand length); DXF = the exact cross-section in mmSTEP · STL · DXF
2020-3002020 aluminum extrusion, 6 mm slot (20-series): 20 × 20 mm section, 300 mm long, square ends (a tri-clamp engine stand length); DXF = the exact cross-section in mmSTEP · STL · DXF
2020-4002020 aluminum extrusion, 6 mm slot (20-series): 20 × 20 mm section, 400 mm long, square ends (a tri-clamp engine stand length); DXF = the exact cross-section in mmSTEP · STL · DXF
2020-10002020 aluminum extrusion, 6 mm slot (20-series): 20 × 20 mm section, 1000 mm long, square ends; DXF = the exact cross-section in mmSTEP · STL · DXF

Plain text: sheet.txt · JSON: /api/geometry?object=2020-aluminum-extrusion

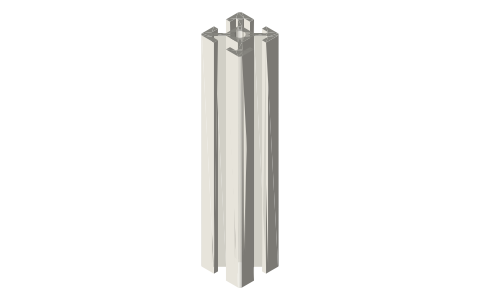

2020 aluminum extrusion, 6 mm slot (20-series), isometric render of a generated part
Render of 2020-100 from the free STEP; not to scale.

How it fits

Parts that fit it

Gear racksrack bolted along a frameMGN9, MGN12 and MGN15 rails, 150 to 400 mmscrewed to the extrusion faceT-slot tongue gauge 5.6 / 5.8 / 6.0 mmtongues slide in the 6.0 mm slot openingRoss yoke alpha frame for two 10 mL syringes2 × M5 into 2020Base plate for 1.5, 2 and 3 in tri-clamp Stirling…4 × M5 into 2020Alpha V-twin frame for two 10 mL syringes at 90°2 × M5 into 2020Slide-in T-nuts for 20, 30, 40, 45 mm and 1 in,…tongue in the opening, body in the cavity (slide)Drop-in T-nuts for 20, 30, 40, 45 mm and 1 in,…drops through the opening, turns 90° in the cavityL corner brackets for 20, 30, 40, 45 mm and 1 in,…legs flat on two profile faces at 90°Inside corner gussets for 20, 30, 40, 45 mm and 1…legs on two profile faces in the inside cornerSnap-in slot covers for 20, 30, 40, 45 mm and 1…stem in the slot opening, barb behind the lipsExtrusion end feet for 20, 30, 40, 45 mm and 1…profile end in the socket (socket fit)Joining plates, 2 × 3 holes, for 20, 30, 40, 45…holes over the slot centrelines on the profile pitchEnd caps for every T-slot profile hereend-cap-20-1x1: pins in the centre bores (press)

Alternatives

2040 aluminum extrusion, 6 mm slotsame 20-series (6 mm slot) slot, 20 × 40 mm2060 aluminum extrusion, 6 mm slotsame 20-series (6 mm slot) slot, 20 × 60 mm2080 aluminum extrusion, 6 mm slotsame 20-series (6 mm slot) slot, 20 × 80 mm

Also needed

Button head socket screws, M2–M8M5 screws through brackets into the T-nuts

In these build lists

Gamma Stirling, 2 in tri-clampHot spool with a shell displacer, a crank head that carries the crankshaft, the …Thermoacoustic standing-wave engine, 2 in spoolsNo moving parts: a heated stack between two heat exchangers in a closed-open 2 i…Beta Stirling, rhombic drive, 2 in tri-clampDisplacer and piston in one bore, driven by two counter-rotating gears on a rhom…Free-piston Stirling, 2 in tri-clampNo crank: piston and displacer each hang on a stack of spiral flexures, with a t…Thermoacoustic traveling-wave loop, 2 in…A looped traveling-wave thermoacoustic engine in 2 in tri-clamp, torch-heated, w…Thermoacoustic traveling-wave loop, 2 in…The looped traveling-wave thermoacoustic engine with the free-piston's flexure-s…Thermoacoustic-Stirling hybrid loop with…The looped traveling-wave engine with a flat membrane clamped in the loop to sto…Thermoacoustic standing-wave engine,…A propane-fired standing-wave thermoacoustic engine in 2 in tri-clamp: one-piece…Thermoacoustic standing-wave engine, half-wave,…The propane standing-wave engine as a half-wave: closed at both ends, a 40 mm lo…Thermoacoustic standing-wave engine, half-wave,…The propane standing-wave engine as a half-wave with the free-piston's linear al…

You might also need

4040 aluminum extrusion, 6 mm slot (20-series, 2 × 2), isometric render of a generated part
4040 aluminum extrusion, 6 mm slot (20-series, 2 × 2)40.0×40.0 mm★ 2 files

Questions

What is the slot size of 2020 extrusion?

Opening 6 mm, lip 2 mm, cavity 12 mm wide under the lips and 6 mm deep from the face to the floor, per Misumi 5 series, 6 mm slot's drawing.

What T-nuts fit 2020 extrusion?

The 20-series (6 mm slot) nuts: slide-in (tnut-slide-20-m3, tnut-slide-20-m4, tnut-slide-20-m5) and drop-in versions, threaded M3, M4, M5 as tap-drill holes, cut to this slot's exact space.

Can I subtract this file to make a part that fits the extrusion exactly?

Yes: the outline is exactly 20 × 20 mm with R1 corners; extrude the DXF or subtract the 1000 mm STEP, then open the pocket by your fit.

How heavy is 2020 extrusion?

0.5 kg/m, 183 mm² section, as Misumi states.

What in this model is not taken straight from the drawing?

Nothing: every feature is a stated number.
