Tri-clamp elbow diaphragm alpha, 2 in

A torch-heated alpha in 2 in tri-clamp: a square of fittings with a diaphragm head on each tee branch and both rods on one crank pin at 90°.

2 in · two diaphragms at 15 mm stroke, 14.2 mL each, 90° on one pin · dead volume 478 mL with the fillers (1228 without) · swept / dead 0.030

Exact dimensions. Every part is drawn at true size with no printing tolerance; each part's page lists its mating features and the fit each joint needs, so open those by your process's clearance before making the parts.

43 parts, every one a file here · all STL URLs · Markdown · tick lines as you go (saved in this browser)

subsystemobjectpartsqtynote
NoneFrame for the 2 in tri-clamp elbow diaphalpha-frame-2in STEP · STL1base, two feet, diagonal strut, bearing block
NoneTorch stand for a horizontal tri-clamp htorch-stand-40 STEP · STL1under the middle of the hot spool; the heat source is a torch flame
NoneSocket head cap screwsshcs-m4x20 STEP · STL2torch stand to the frame
NoneSanitary clamp elbowselbow-90-2in STEP · STL1the corner: hot leg to cold leg
NoneSanitary clamp spoolsspool-2in-3in STEP · STL2hot leg (over the flame) and cold leg (cooler)
NoneSanitary clamp tees and short-outlet teetee-short-2in STEP · STL2hot tee (branch up) and cold tee (branch inward)
NoneTri-clamp end captc-cap-2in-flat STEP · STL2close the tees' runs
NoneTri-clamp flat gasket (hot jointhot-gasket-2in STEP · STL2both hot-spool joints
NoneTri-clamp heat shield washerheat-shield-2in STEP · STL2on the hot spool, flame side of each clamp
NoneTri-clamp gaskettc-gasket-2in STEP · STL4cap joints, elbow–cold spool, cold spool–cold tee
NoneTri-clamp clampclamp-half-2in STEP · STL16eight joints, two halves each
NoneSocket head cap screwsshcs-m5x30 STEP · STL16clamp bolts
NoneHex nutsnut-m5 STEP · STL16clamp nuts, in the hex traps
NoneRegenerator cage for 2 in and 1.5 in triregenerator-cage-47-5x40 STEP · STL1in the cold spool at the elbow joint, on the gasket lip
NoneRegenerator matrix disc Ø44 / Ø32 × 0.5 mesh-disc-44mm STEP · STL80fill the cage, 40 mm
NoneTri-clamp volume fillersplug-tee-2in-blind STEP · STL2fill both tee runs; passage from the spool side to the branch
NoneTri-clamp volume fillerssleeve-2in-76.2 STEP · STL1hot spool: 1 mm heater gap
NoneTri-clamp volume fillerssleeve-2in-32 STEP · STL1cold spool above the regenerator: 1 mm cooler gap
NoneTri-clamp finned coolercooler-half-2in-56 STEP · STL2on the cold spool; or the jacket shell
NoneSocket head cap screwsshcs-m4x30 STEP · STL4cooler (or jacket) ears
NoneHex nutsnut-m4 STEP · STL6cooler (or jacket) ears (4), torch stand (2)
NoneTri-clamp jacket shelljacket-half-2in-56 STEP · STL2optional, in place of the finned cooler
NoneTri-clamp jacket shelljacket-port-cap STEP · STL2optional, one per jacket half
NoneTri-clamp diaphragm headdiaphragm-head-2in STEP · STL2hot (up) and cold (inward)
NoneTri-clamp diaphragm membranemembrane-2in STEP · STL2clamped in place of the gaskets
NoneTri-clamp diaphragm centre disc and backdiaphragm-disc-2in STEP · STL2head side of each membrane, carries the rod
NoneTri-clamp diaphragm centre disc and backdiaphragm-backing-2in STEP · STL2gas side of each membrane
NoneSocket head cap screwsshcs-m2x8 STEP · STL6three per membrane
NoneHex nutsnut-m2 STEP · STL6three per membrane
NoneDisplacer rods Ø2 × 60rod-3x150 STEP · STL2diaphragm rods
NoneRod clevises for a Ø2 or Ø3 rod or a Ø5 rod-clevis-3mm STEP · STL2one per rod
NoneConnecting rods 30 to 80 mm centres withconrod-50 STEP · STL2both on the one crank pin
NoneBall bearingsbearing-623 STEP · STL4con-rod eyes
NoneDowel pinsdowel-3x20 STEP · STL2clevis pins: each con-rod sits beside its clevis on the pin
NoneDowel pinsdowel-3x30 STEP · STL1crank pin
NoneCounterweighted crank discscw-crank-disc-stroke15 STEP · STL115 stroke, one pin
NoneCrankshafts Ø3crankshaft-5x80-dflat STEP · STL1
NoneBall bearingsbearing-625 STEP · STL2in the strut's bearing block
NoneSet-screw shaft collars Ø3 to Ø12collar-5mm STEP · STL2either side of the bearing block
NoneFlywheels Ø100–Ø200 with hex-nut rim pocflywheel-150-m10-b5 STEP · STL1behind the bearing block
NoneHex nuts M8nut-m10 STEP · STL18one in each rim pocket
NoneSet screws (grub screws)set-m3x4 STEP · STL8grubs: 2 diaphragm discs, 2 clevises, crank disc, 2 collars, flywheel
NoneSet screws (grub screws)set-m4x10 STEP · STL3centre the torch head in the stand ring

Assembled engine

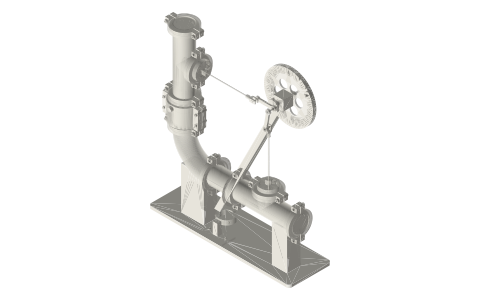

Tri-clamp elbow diaphragm alpha, 2 in, assembled

Torch-heated alpha Stirling engine in 2 in tri-clamp fittings: a square of elbow, spools and tees with a clamped diaphragm on each tee branch driving one crank pin at 90°, 430 × 143 × 500 mm.

Assembly STEP (2.6 MB) · STL (11.6 MB) · 235 parts

Build order

  1. Frame on the bench; torch stand on the frame.
  2. Elbow on its foot. Cold side: Type B gasket, regenerator cage with its mesh on the lip inside the cold spool, sleeve above it, clamp; cooler halves on the spool; Type B gasket, cold tee (branch toward the crank), tee plug from the spool end, Type B gasket, cap, clamps.
  3. Hot side: hot gasket, hot spool with its sleeve, hot gasket, hot tee (branch up) with its plug, Type B gasket, cap, clamps; heat shields on the spool next to both hot clamps.
  4. Diaphragms: backing disc, membrane, centre disc and three M2 × 8 each; Ø3 × 150 rod in each boss; membrane on the branch, head over the rod, clamp.
  5. Crankshaft through the bearing block with collars, flywheel with its nuts, crank disc with the Ø3 × 30 pin; each con-rod beside its rod clevis on a Ø3 × 20 pin; both big ends on the one crank pin.
